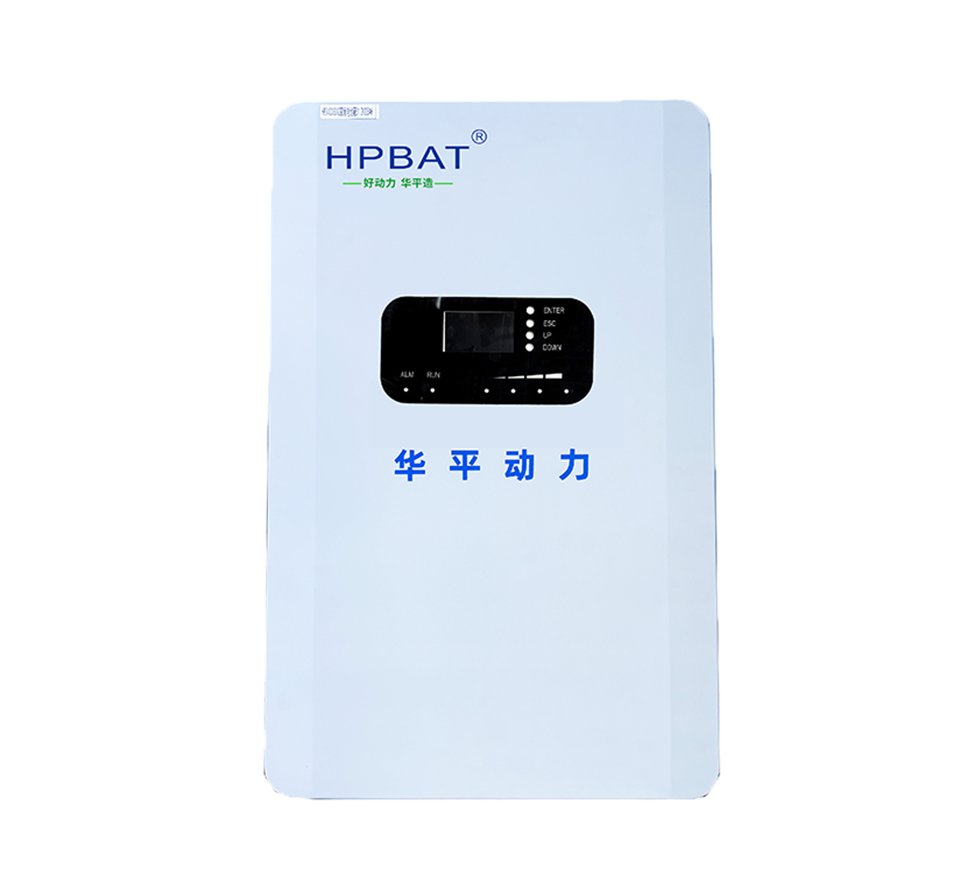

Wall-mounted home energy storage battery system (with display panel)
Supports over 6,000 charge cycles at 80% Depth of Discharge (DOD). Operates seamlessly in temperatures ranging from -4°F to 167°F. Equipped with a Battery Management System (BMS) for protection against overcharging, short circuits, and extreme temperatures. IP56+ rating ensures reliability for both indoor and outdoor environments. Lightweight and space-efficient, making installation quick and easy.
Type: LiFePO4 Battery
Cathode Material: LFP
Minimum Order Quantity: 50
Delivery Time: 20 days
Customization/OEM/ODM: Yes
Factory: HPP
Delivery Method: FOB, EXW, CIF
Payment Method: T/T, L/C, PayPal
Shipping Methods: 10 feet, 20 feet, 40 feet, 60 feet
The HPP Wall-mounted Home Energy Storage Battery System is an intelligent and modular energy storage solution specifically designed for modern households. This series adopts standard 25.6V and 51.2V platforms, offering four capacity configurations of 2.5KWh, 5KWh, 10KWh, and 16KWh. Adhering to the design concepts of prioritizing safety, efficient integration, and intelligent convenience, it features an elegant and compact wall-mounted structure, easily integrating into the home environment, and helping users build a safe, economical, and green home micro-grid, achieving energy autonomy and freedom in electricity usage.
Key Features & Benefits
Long-Lasting Battery Life and a Solid Warranty :They can go through over 6,000 charge cycles, so you can count on them for a long time. And with a strong 5-year warranty, you don’t have to worry about replacing them often.
Monitoring & Protection Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit
Communication : RS485 / RS232 / CAN-bus
Optional Functions :Bluetooth / WiFi / 4G / 5G / Circuit Breaker / Heating / Active Balance / LED Touch Screen / APP
Accessories : Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire
Compatible Inverters :Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc.
Product Description
The HPP household energy storage system is a high-security, high-reliability solar energy storage system based on lithium iron phosphate batteries and equipped with a battery management system (BMS). It stores the remaining electricity generated by the rooftop photovoltaic panels and uses it at a lower cost. Electricity rates, supply your home appliances during the day, saving your cost on electricity bills and reducing your dependence on the grid.
As a leading Domestic Energy Storage Solution, this product is designed to seamlessly integrate with residential solar battery storage systems, enabling users to store excess energy generated during the day for use during peak hours or in case of power outages. This not only reduces reliance on the grid but also helps lower electricity bills and minimize the carbon footprint of households.
Whether you are looking to enhance the efficiency of your solar energy system or simply want a reliable backup power source for your home, the Residential Energy Storage product offers a comprehensive solution that combines cutting-edge technology with user-friendly design. With its high-rated power, advanced inverter, and versatile storage capacity, this system is the ideal choice for homeowners seeking a reliable and sustainable energy storage solution.
| Model | 25.6V 2.5KWh | 51.2V 5KWh | 51.2V 10KWh | 51.2V 16KWh |
|---|---|---|---|---|
| Nominal Capacity | 100Ah | 100Ah | 200Ah | 314Ah |
| Nominal Energy | 2.5KWh | 5KWh | 10KWh | 16KWh |
| Operating Voltage | 42.4-58.4V | 42.4-58.4V | 42.4-58.4V | 42.4-58.4V |
| Nominal Voltage | 25.6V | 51.2V | 51.2V | 51.2V |
| Max Charging Voltage | 58.4V | 58.4V | 58.4V | 58.4V |
| Max Continuous Discharge Current | 100A | 50A | 100A | 75A |
| Max Continuous Charging Current | 50A | 50A | 100A | 150A |
| Communication Mode | RS232, RS485, CAN | RS232, RS485, CAN | RS232, RS485, CAN | RS232, RS485, CAN |
| Operating Temperature | -20°C~60°C | -20°C~60°C | -20°C~60°C | -20°C~60°C |
| Operating Humidity | <85% RH | <85% RH | <85% RH | <85% RH |
| Protection Class | IP20 | IP20 | IP20 | IP20 |
| Weight | 30kg | 50kg | 87kg | 132kg |
| Dimensions | 400mm(W)*165mm(D)*560mm(H) | 400mm(W)*165mm(D)*675mm(H) | 450mm(W)*225mm(D)*720mm(H) | 480mm(W)*280mm(D)*960mm(H) |
