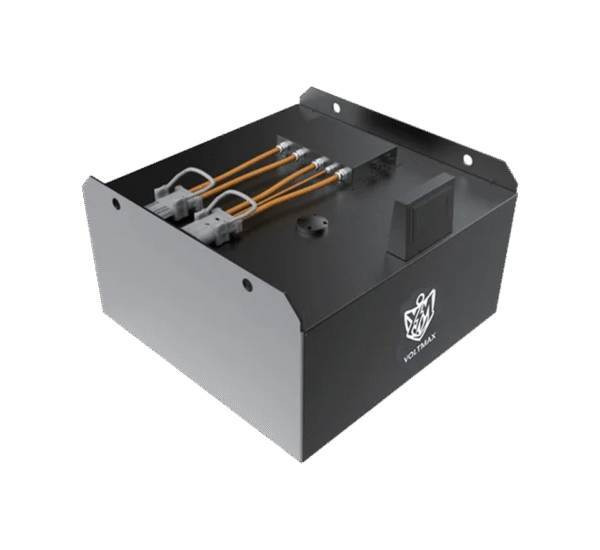

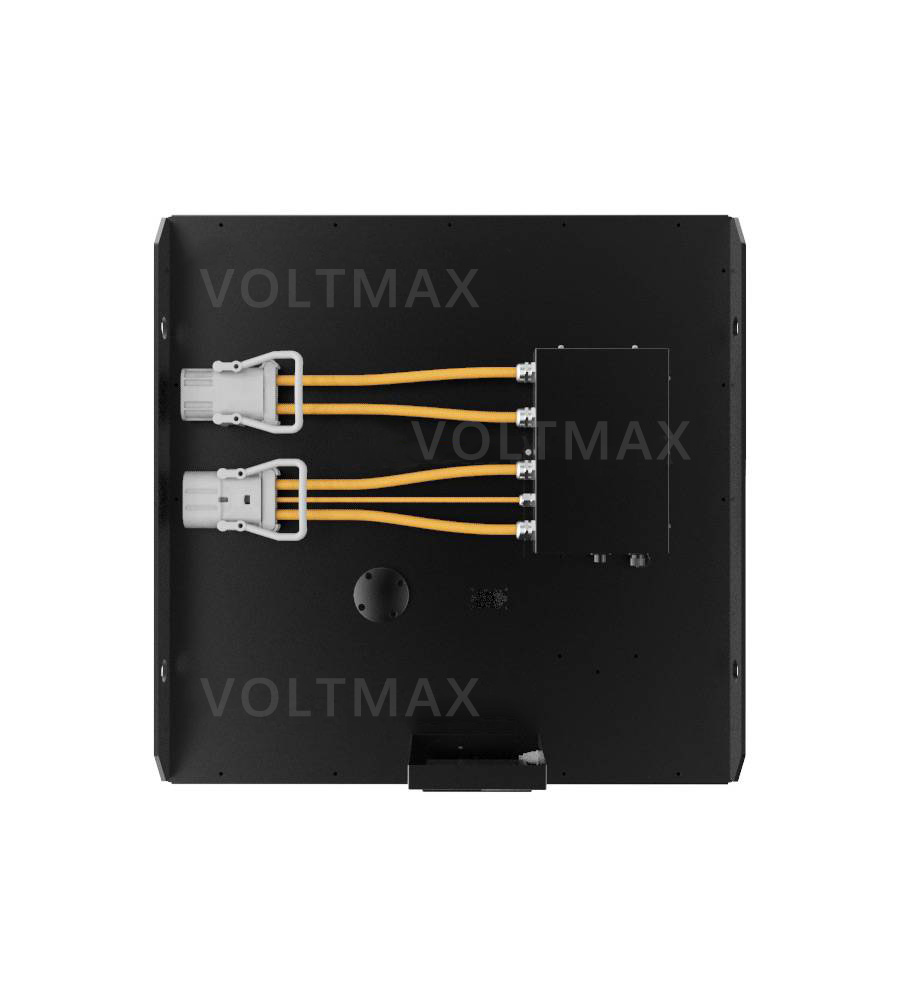

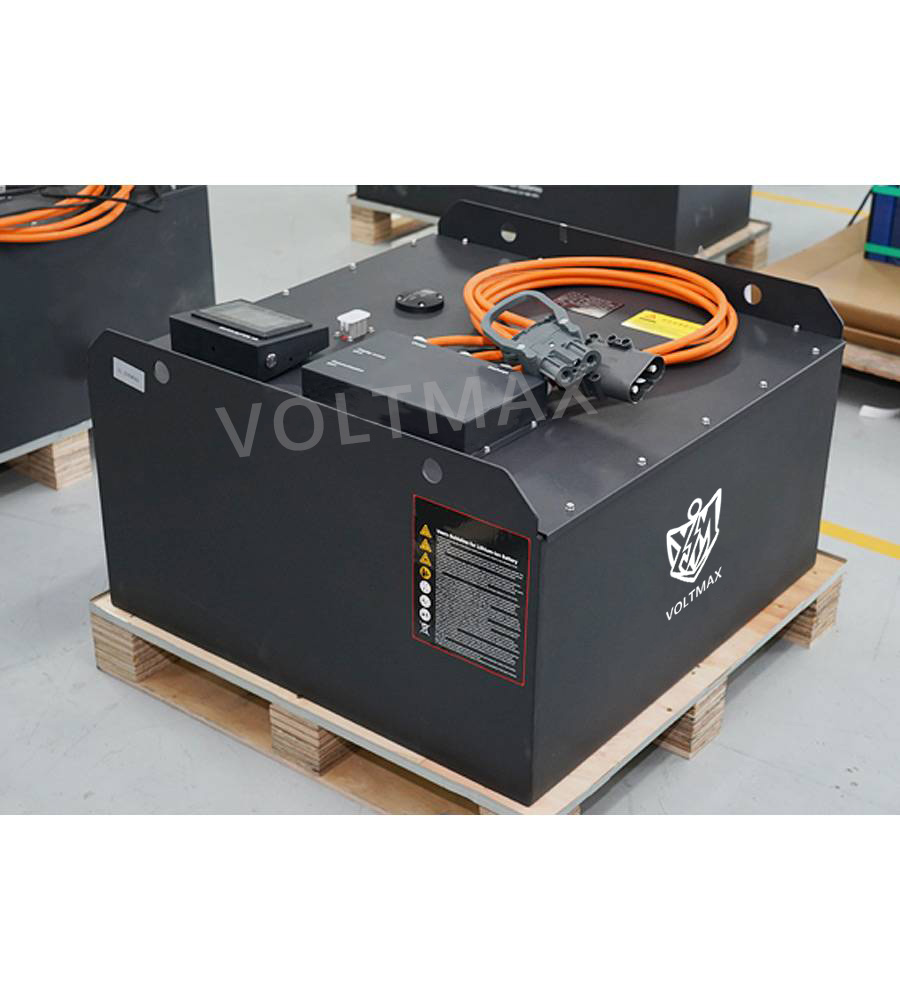

Forklift lithium battery 51.2V 700Ah
Category: 48V Forklift lithium battery
Lithium battery type: LiFePO4
Rated voltage: 51.2V
Nominal capacity :630AhAh
Nominal energy :32.2kWh
Dimensions (length * width * height) :950 x 592 x 450 mm
Weight :〜228 Kg
Working voltage range :40V-58.4V
Aoge Power 51.2V 690Ah forklift lithium battery, a high-performance power solution specially designed for OEM, ODM and wholesale buyers. This advanced LiFePO4 battery combines powerful capacity with outstanding durability, making it an ideal choice for demanding material handling operations. This battery has a cycle life of over 3,500 times, ensuring safety, reliability and efficiency in various industrial applications.
Main function
High capacity and high efficiency: With a nominal energy of 35.32kWh and a continuous discharge current of 300A, it can achieve the best performance.
Durable design: IP54 rating, featuring a sturdy metal casing to ensure dust and water resistance.
Long lifespan: It can cycle over 0.25 times at a 3500 depth of discharge (DOD) of 80% and comes with a 5-year warranty, allowing you to rest easy.
Advanced BMS: Intelligently monitor SOC, voltage, current and temperature to prevent overcharging, overdischarging and short circuit.
Flexible transportation options: Sea, air or land transportation are available, with various container sizes and customizable delivery terms.
Product description
Aoge Power 51.2V 690Ah Lithium Battery for Forklifts is designed to meet the stringent requirements of modern material handling. Utilizing the advanced LiFePO4 lithium battery, this battery has a nominal voltage of 51.2V and a capacity of 690Ah. The total energy output is 35.32kWh, which enables extended running time and eliminates the need for frequent charging.
This battery is designed for a wide range of applications and can operate effectively within the voltage range of 40V to 58.4V. It is suitable for various forklift models. Its compact size (770 x 768 x 450 mm) and lightweight design (~230 kg) make it easy to install and integrate into existing systems.
Safety is of utmost importance; therefore, the battery is equipped with the BMS system. This system can continuously monitor key parameters such as battery voltage and temperature. This system not only enhances performance but also extends the battery’s lifespan by preventing potential hazards such as overcharging or overheating.
The cycle life exceeds 3500 cycles. Under a80% DOD and 0.25C condition, this lithium battery is extremely durable. Compared with traditional lead-acid batteries, it can significantly reduce the total cost of ownership. Moreover, it can operate in extreme temperatures ranging from -20℃ to 60℃, making it an excellent choice for diverse working environments.
The battery is equipped with RS485 and CAN-bus communication protocols, enabling seamless integration with existing monitoring systems. The LCD display on the casing provides real-time information about the battery status, ensuring that users can easily monitor performance.
Whether you are looking to upgrade your fleet or seeking a reliable power solution for OEM projects, our 51.2V 690Ah forklift lithium battery is the top choice for efficiency and sustainability in material handling applications.
| 48V 700AH Forklift Lithium Battery | Specifications |
| Model | AG48690LFP-LPFK |
| Battery Type | Lithium Iron Phosphate |
| Rated Voltage | 51.2V |
| Rated Capacity | 690Ah |
| Rated Energy | 35.33kWh |
| Dimensions | 770×768×450mm |
| Weight | 230kg |
| Maximum Continuous Charging Current | 200A |
| Maximum Continuous Discharging Current | 300A |
| Peak Discharging Current | 1000A (for 3 seconds) |
| Operating Voltage Range | 40V-58.4V |
| Output Power | 12kw |
| IP Rating | IP54 |
| Heat Sink | Natural cooling |
| Cycle Life | >3500 cycles (80% DOD) |
| Charging Temperature | 0°C~55°C |
| Discharging Temperature | -20℃~60℃ |
| Remote Monitoring Cloud System | Yes |
| BMS | Youdan |
| External Communication | RS485, CAN bus |
| Global Positioning System (GPS) | Yes |
| LCD Display | Yes |
| Warranty Policy | 5 years or 3500 cycles |
| Charging Interface Type | Rema |
| Discharging Connector Type | Rema |
| Silk Screen Printing / Label / Laser Logo | Yes |
| User Manual | Yes |
| OEM / ODM | Yes |
| Shipping | Yes |
