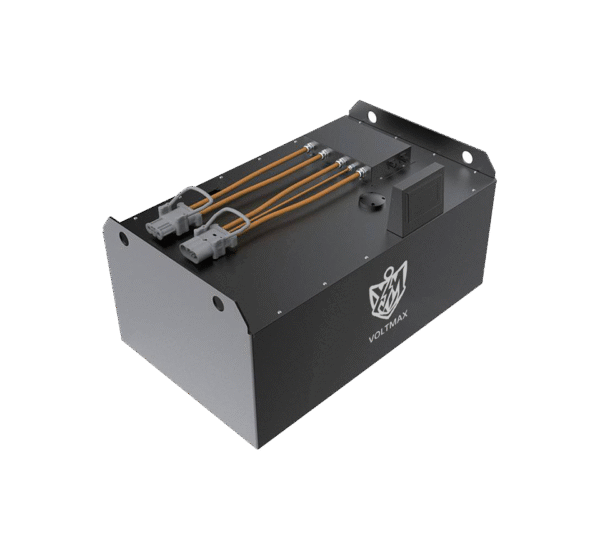

Forklift lithium batteries 51.2V, 48V, 630Ah, 600Ah

Category: 48V Forklift lithium battery
Lithium battery type: LiFePO4
Rated voltage: 51.2V
Nominal capacity :630AhAh
Nominal energy :32.2kWh
Dimensions (length * width * height) :950 x 592 x 450 mm
Weight :〜228 Kg
Working voltage range :40V-58.4V

Aoge Power 51.2V 630Ah forklift lithium battery, a high-performance energy solution specially designed for OEM, ODM and wholesale buyers. This advanced lithium iron phosphate (LiFePO4) battery features outstanding efficiency and reliability, making it an ideal choice for demanding material handling applications.

Main function

High energy capacity: With a rated capacity of 630Ah and an energy output of 32.2kWh, this battery can ensure stable power supply for various forklift operations, thereby enhancing the production efficiency of the entire shift.
Durable building: With a metal casing and rated IP67, it offers excellent dust and water protection, ensuring a long service life in harsh environments.
Advanced battery management system: The intelligent BMS continuously monitors key parameters to prevent overcharging, overdischarging and short circuits, thereby enhancing safety.
Long service life: The designed service life exceeds 3,500 cycles at 80% depth of discharge (DOD). Compared with traditional lead-acid batteries, this battery significantly reduces replacement costs.
Flexible transportation options: Delivery can be made through FOB, EXW or CIF, using various transportation methods such as sea, air or land.

Product description

Aoge Power 51.2V 630Ah forklift lithium battery is designed to provide reliable power for modern material handling operations. With a rated voltage of 51.2V, this lithium iron phosphate (LiFePO4) battery ensures excellent energy density and efficiency. With dimensions of 950 x 592 x 450 mm and a weight of approximately 228 kg, it is suitable for various forklift models while offering powerful performance. This battery can operate effectively within a wide temperature range from -20°C to 60 °C, making it suitable for both indoor and outdoor applications.
The natural cooling system maintains optimal performance without additional cooling, thereby enhancing reliability. The maximum charging current is 200A and the peak discharging current is 1000A. This battery supports high-demand applications and prioritizes safety through its advanced battery management system (BMS). BMS can prevent serious problems such as overcharging and overheating, ensuring its safe operation throughout its service life.
Investing in 51.2V 630Ah forklift lithium batteries not only provides a reliable power source but also contributes to sustainable development through its environmentally friendly design. Long service life minimizes the need for frequent replacement, ultimately reducing your total cost of ownership. Choose our 51.2V 630Ah forklift lithium battery to tailor an efficient, powerful and environmentally friendly solution for your material handling needs.



48V 600AH Forklift Lithium Battery Specifications
Model AG48630LFP-LPFK
Battery Type Lithium Iron Phosphate
Rated Voltage 51.2V
Rated Capacity 630Ah
Rated Energy 32.2kWh
Dimensions 950×592×450mm
Weight 228kg
Maximum Continuous Charging Current 200A
Maximum Continuous Discharging Current 300A
Peak Discharging Current 1000A (for 3 seconds)
Operating Voltage Range 40V-58.4V
Internal Series/Parallel Connections 16S2P
IP Rating IP67
Heat Sink Natural cooling
Cycle Life >3500 cycles (80% DOD)
Charging Temperature 0°C~55°C
Discharging Temperature -20℃~60℃
Battery Case Metal
External Communication RS485, CAN bus
Battery Monitoring Cloud monitoring, 4G (antenna)
Display LCD display on the case
Warranty Policy 5 years or 3500 cycles
Charging Interface Type Rema 320A
Discharging Connector Type Anderson 350A
Silk Screen Printing / Label / Laser Logo Yes
User Manual Yes
OEM / ODM Yes
Shipping Yes
BMS Advanced intelligent BMS monitors SOC, system voltage, current, battery voltage, battery temperature, overcharge, overdischarge, overcurrent, overvoltage, undervoltage, over-temperature, short circuit, etc.
