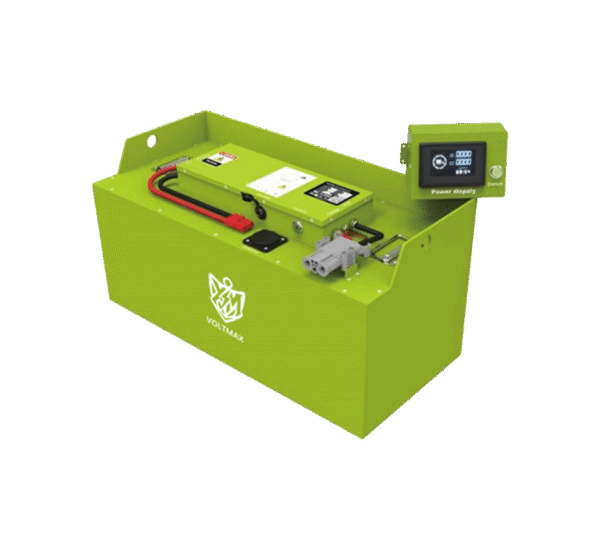

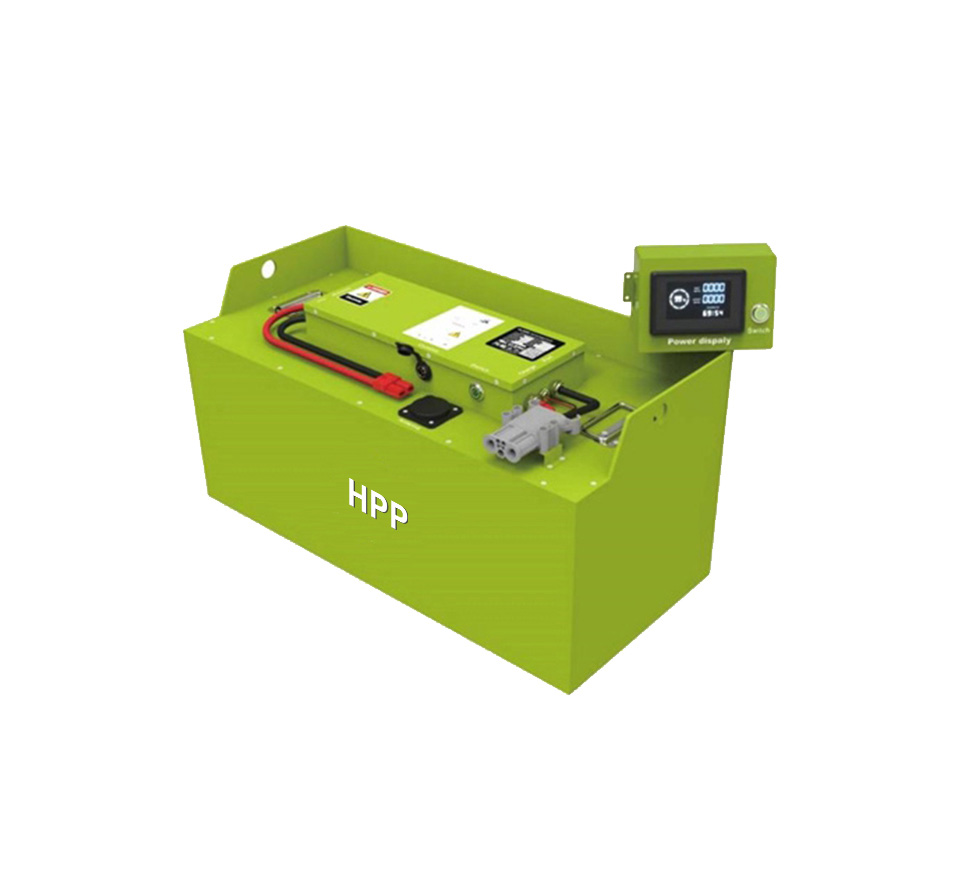

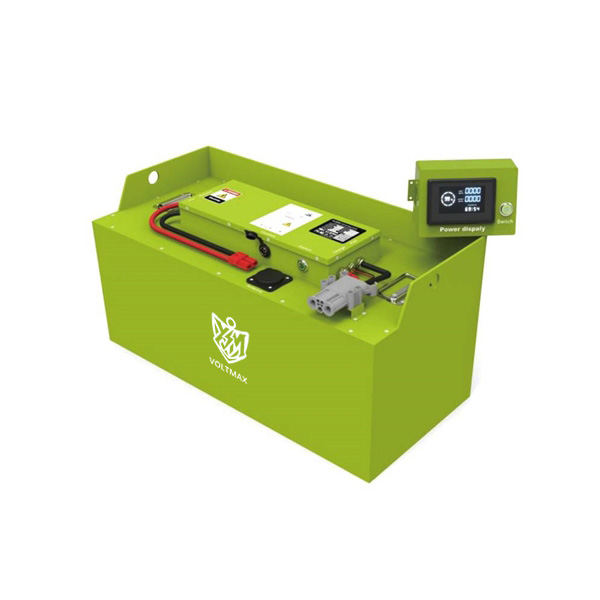

Forklift lithium batteries 38.4V, 36V, 250Ah, 240Ah, 200Ah
Category: 36v Forklift lithium battery
Lithium battery type: LiFePO4
Rated voltage: 38.4V
Nominal capacity: 240Ah
Nominal energy: 9.21kWh
Dimensions (length * width * height) : 870 x 400 x 430 mm
Weight:〜250KG
Operating voltage range: 30V-43.8V
Aoge Power 38.4V 240Ah forklift lithium battery is a high-performance and long-lasting energy solution, specifically designed for heavy material handling. LiFePO4 lithium battery, which features outstanding efficiency, excellent cycle life and enhanced safety. This battery is highly suitable for OEM, ODM and wholesale buyers. It offers reliable power supply, high discharge capacity and is easy to integrate into various forklift systems.
Main function
High capacity and long service life: 9.21 kilowatt-hours of nominal energy and service life exceeding 4,000 cycles at 80% depth of discharge (DOD), ensuring long-term reliability and a low total cost of ownership.
Powerful performance: 240A continuous discharge with a peak discharge current of 720A (lasting for 3 seconds), designed to meet the power demands of large forklifts and heavy-duty operations.
Compact and robust design: Measuring 870 x 400 x 430 mm and weighing approximately 250 kg, this battery is suitable for most heavy-duty forklift models without compromising performance.
Advanced safety features: Intelligent BMS monitors important parameters such as SOC, battery temperature, voltage, etc., and ensures maximum safety through built-in overcharge, overdischarge and short-circuit protection functions.
Wide operating range: Designed for operation in extreme temperatures from -20°C to 60 °C, it features an IP65 industrial package grade with dust-proof and water-proof performance, making it suitable for various industrial environments.
Application
Aoge Power 38.4V 240Ah forklift lithium battery is specially designed for high performance, durability and efficiency. It is for OEM, ODM and wholesale buyers who need to provide a reliable power source for their material handling equipment. With a nominal energy capacity of 9.21 kWh and a 240Ah capacity, this lithium-ion battery can meet high demands and ensure the best power supply for the most demanding forklifts and industrial vehicles.
This robust battery can deliver 240A, capable of handling a peak discharge of 720A (lasting for 3 seconds), enabling it to easily manage high-power operations such as lifting heavy objects or navigating steep slopes. Its compact size of 870 x 400 x 430 mm and weight of 250 kg make it an ideal choice for large forklift models, while still providing space efficiency and easy integration.
38.4V 240Ah forklift lithium battery Features a: Cycle life exceeding 4000 times at 80% discharge depth (DOD), resulting in a longer service life. This can reduce the number of replacements, lower maintenance costs, and thereby enhance the long-term cost-effectiveness of the battery.
Safety is the key focus of this battery design. It is equipped with an advanced battery management system (BMS) that continuously monitors the charging status (SOC), system voltage, current, battery voltage and battery temperature, ensuring that the battery operates within safe parameters. The BMS also provides protection against overcharging, overdischarging, overcurrent, overvoltage, low voltage, overheating and short circuits, safeguarding both the battery and the connected devices.
This battery is designed for a wide range of applications and can operate within a temperature range of -20°C to 60°C, making it suitable for both indoor and outdoor industrial uses. Its IP65 industrial packaging grade ensures it is protected from dust and water, enabling it to easily withstand harsh operating conditions. The natural cooling system does not require an additional cooling mechanism, thus simplifying maintenance and ensuring optimal efficiency.
| 36V 240AH Forklift Lithium Battery | Specifications |
| Model | AG36240LFP-LPFK |
| Battery Type | Lithium Iron Phosphate |
| Rated Voltage | 38.4V |
| Rated Capacity | 240Ah |
| Rated Energy | 9.21kWh |
| Dimensions | 870×400×430mm |
| Weight | 250kg |
| Maximum Continuous Charging Current | 120A |
| Maximum Continuous Discharging Current | 240A |
| Peak Discharging Current | 720A (for 3 seconds) |
| Operating Voltage Range | 30V-43.8V |
| IP Rating | IP65 |
| Heat Sink | Natural cooling |
| Cycle Life | >4000 cycles (80% DOD) |
| Charging Temperature | 0°C~55°C |
| Discharging Temperature | -20℃~60℃ |
| Battery Case | Metal |
| External Communication | RS485, CAN bus, 4G |
| Warranty Policy | 5 years |
| Silk Screen Printing / Label / Laser Logo | Yes |
| User Manual | Yes |
| OEM / ODM | Yes |
| Shipping | Yes |
| Charging Interface Type | Rema 160A |
| Discharging Connector Type | Anderson 175A |
| BMS | Advanced intelligent BMS monitors SOC, system voltage, current, battery voltage, battery temperature, overcharge, overdischarge, overcurrent, overvoltage, undervoltage, over-temperature, short circuit, etc. |
