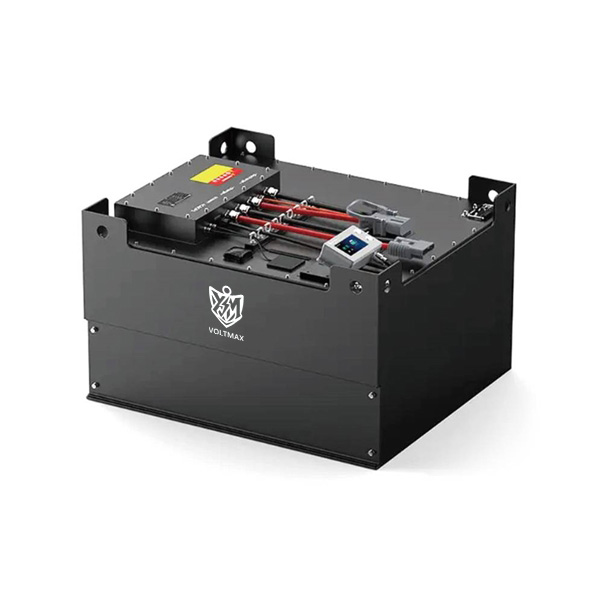

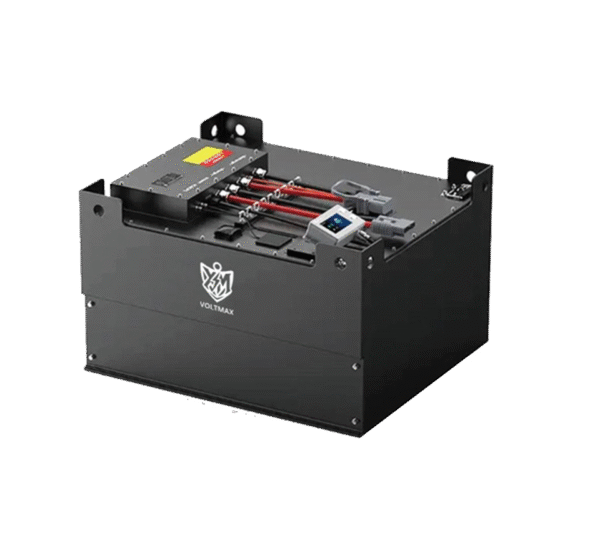

80V 420Ah Forklift lithium battery
Category: 80V Forklift lithium battery
Lithium battery type: LiFePO4
Rated voltage: 80V
Nominal capacity 420Ah
Nominal energy :33.6kWh
Dimensions (length * width * height) :937 x 797 x 777 mm
Weight :〜409Kg
Working voltage range :62.5V-91.25V
Aoge Power 80V 420Ah forklift lithium battery, an advanced energy solution specially designed for OEM, ODM and wholesale buyers. This lithium iron phosphate (LiFePO4) battery features outstanding performance and reliability, making it highly suitable for heavy-duty material handling applications.
Main function
High energy capacity: With a rated capacity of 420Ah and an energy output of 33.6kWh, this battery can ensure stable power supply for various forklift operations, thereby enhancing the production efficiency of the entire shift.
Robust structure: Equipped with an internal metal casing and rated IP65, it offers excellent dust and water protection, ensuring durability in harsh environments.
Advanced battery management system: The intelligent BMS continuously monitors key parameters to prevent overcharging, overdischarging and short circuits, thereby enhancing safety.
Long service life: The designed service life exceeds 4,000 cycles at 80% depth of discharge (DOD). Compared with traditional lead-acid batteries, this battery significantly reduces replacement costs.
Flexible transportation options: Delivery can be made through FOB, EXW or CIF, using various transportation methods such as sea, air or land.
Product description
Aoge Powerx 80V 420Ah forklift lithium battery is designed to provide reliable power for modern material handling operations. With a rated voltage of 80V, this lithium iron phosphate (LiFePO4) battery ensures excellent energy density and efficiency. With dimensions of 937 x 797 x 777 mm and a weight of approximately 409 kg, it is suitable for various forklift models while offering powerful performance. This battery can operate effectively within a wide temperature range from -20°C to 60 °C, making it suitable for both indoor and outdoor applications. The natural cooling system maintains optimal performance without additional cooling, thereby enhancing reliability. The maximum charging current is 320A and the peak discharging current is 450A. This battery supports high-demand applications and prioritizes safety through its advanced battery management system (BMS). BMS can prevent serious problems such as overcharging and overheating, ensuring its safe operation throughout its service life. Investing in 80V 420Ah forklift lithium batteries not only provides reliable power but also contributes to sustainable development through their environmentally friendly design. Long service life minimizes the need for frequent replacement, ultimately reducing your total cost of ownership. Choose our 80V 420Ah forklift lithium battery to tailor an efficient, powerful and environmentally friendly solution for your material handling needs.
| 80V 420AH Forklift Lithium Battery | Specifications |
| Model | AG80420LFP-LPFK |
| Battery Type | Lithium Iron Phosphate |
| Rated Voltage | 80V |
| Rated Capacity | 420Ah |
| Rated Energy | 33.6kWh |
| Dimensions | 937×797×777mm |
| Weight | ~409kg |
| Maximum Continuous Charging Current | 320A |
| Maximum Continuous Discharging Current | 320A |
| Peak Discharging Current | 450A (for 5 seconds) |
| Operating Voltage Range | 62.5V-91.25V |
| IP Rating | IP65 |
| Heat Sink | Natural cooling |
| Cycle Life | >4000 cycles (80% DOD) |
| Charging Temperature | 0°C~55°C |
| Discharging Temperature | -20℃~60℃ |
| Battery Case | Metal |
| External Communication | RS485, CAN bus, 4G |
| Warranty Policy | 5 years |
| Silk Screen Printing / Label / Laser Logo | Yes |
| User Manual | Yes |
| OEM / ODM | Yes |
| Shipping | Yes |
| BMS | Advanced intelligent BMS monitors SOC, system voltage, current, battery voltage, battery temperature, overcharge, overdischarge, overcurrent, overvoltage, undervoltage, over-temperature, short circuit, etc. |
