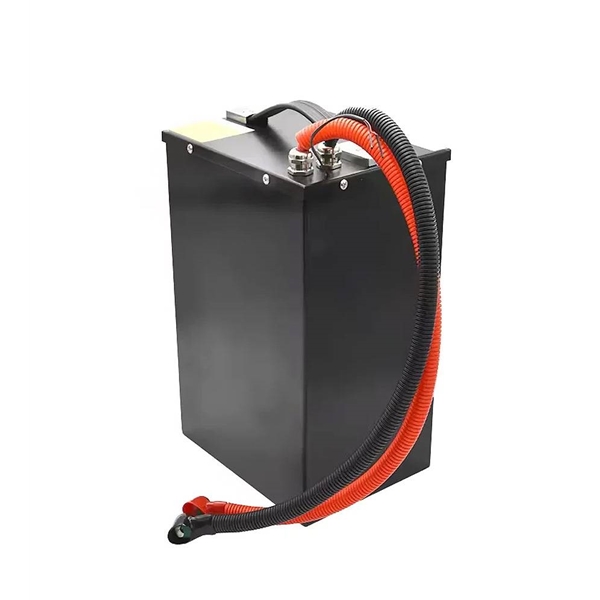

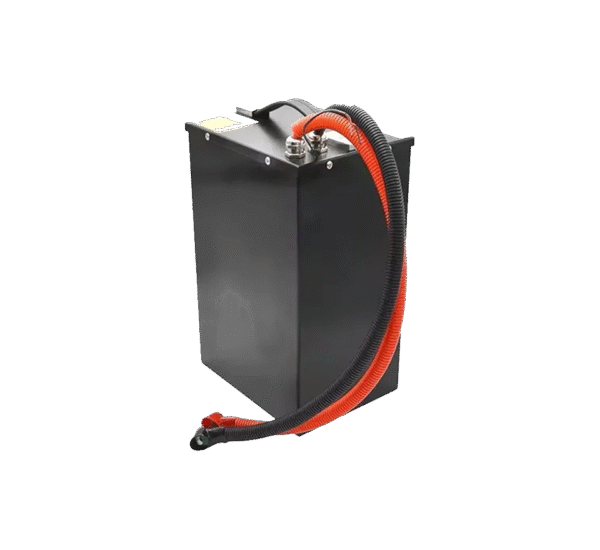

This 72V 40Ah lithium battery is made by Aoge power Lithium Battery, a leading factory in China dedicated to high-performance lithium-ion batteries. This battery is specially designed for electric motorcycles, electric scooters and other electric vehicles, providing reliable power and outstanding efficiency for a wide range of applications.
Main Features
High energy capacity: With a rated capacity of 40Ah and an energy output of 2880Wh, this battery ensures long-lasting performance in demanding applications.
Durable building: With an IP65 rating, this battery features dust and water resistance, making it suitable for outdoor use and harsh environments.
Extended cycle life: Capable of over 2,000 cycles at 80% depth of discharge (DOD), this battery minimizes the need for frequent replacement, ensuring long-term reliability.
Advanced Battery Management System (BMS) : The intelligent BMS can prevent overcharging, overheating and short circuits, ensuring safe operation during use.
Customizable options: Aoge power offers OEM and ODM services, providing customized solutions to meet specific customer requirements.
Application
72V 40Ah lithium battery is widely used and suitable for various applications, including:
Electric scooter
Electric rickshaw
Electric tricycle
Electric motorcycle
Electric bicycle
Electric cabin scooter
Low-speed vehicle (LSV)
The maximum charging voltage is 84V and the discharge cut-off voltage is 54V. This battery has been optimized for various operational requirements. It can operate from -20°C to 60 °C, enabling it to adapt to various environments. The compact design makes installation easy while ensuring your equipment operates efficiently throughout the day. In addition, it also supports fast charging function, shortening the usage interval time.
| LFP TO REPLACE VRLA BATTERY FOR ELECTRIC SCOOTER -AOGE 72V LPES SERIES | |
| MODEL | AG7240LFP-LPES |
| Rated Voltage | 72V |
| Rated Capacity | 40Ah |
| Rated Energy | 2880Wh |
| CELL structure | NCM, 18650 (20S16P) |
| MAX.Charge Voltage | 84V |
| RECMD charge current | 4A |
| RECMD charge METHOD | At 0℃-45℃, Set up charge voltage at 84V, and initial charge-current at 0.2C; change battery continuously till the current drops less 0.02C |
| Max.Charge Current(0.5C) | 20A |
| Discharge CUT-OFF Volt. | 54V |
| RECMD discharge current | 4A |
| Max.Discharge Current(1C) | 40A |
| Peak discharge current(2C) (MAX. 3 second) | 80A |
| Dimensions(L*W*H*TH)MM | 410*180*150 |
| Weight(APPROX)KG±3% | 17kg |
| Max. Parallel and Series QTY | NOT RECOMMENDED |
| IP Rating | IP65 |
| Cycle Life | >2000 cycles @0.2C Charging/Discharging (DOD 80%) |
| Self-Discharge | ≦2% (per month) |
| Charge/storage Temperature | 0°C ~ 45°C @60±25% Relative Humidity |
| Discharge Temperature | -20°C ~ 60°C @60±25% Relative Humidity |
| Optional Functions | Bluetooth / App / WiFi / 4G / GPS / Self-heating / LCD/RS485/RS232/CAN-BUS/etc. |
| JBD/DALY BMS FUNCTION | Over current/Over charge/Over discharge/Over load/Over voltage/Low voltage/Over heat/Over temperature/Low temperature/etc. |
| Terminal | Anderson Connector |
| Battery Case | METAL +LCD |
| Design Life/WARRANTY | 10 Years/3 YEARS |
| Application | 72V 3000W Motor of Electric Motorcycle or Electric Scooter |
