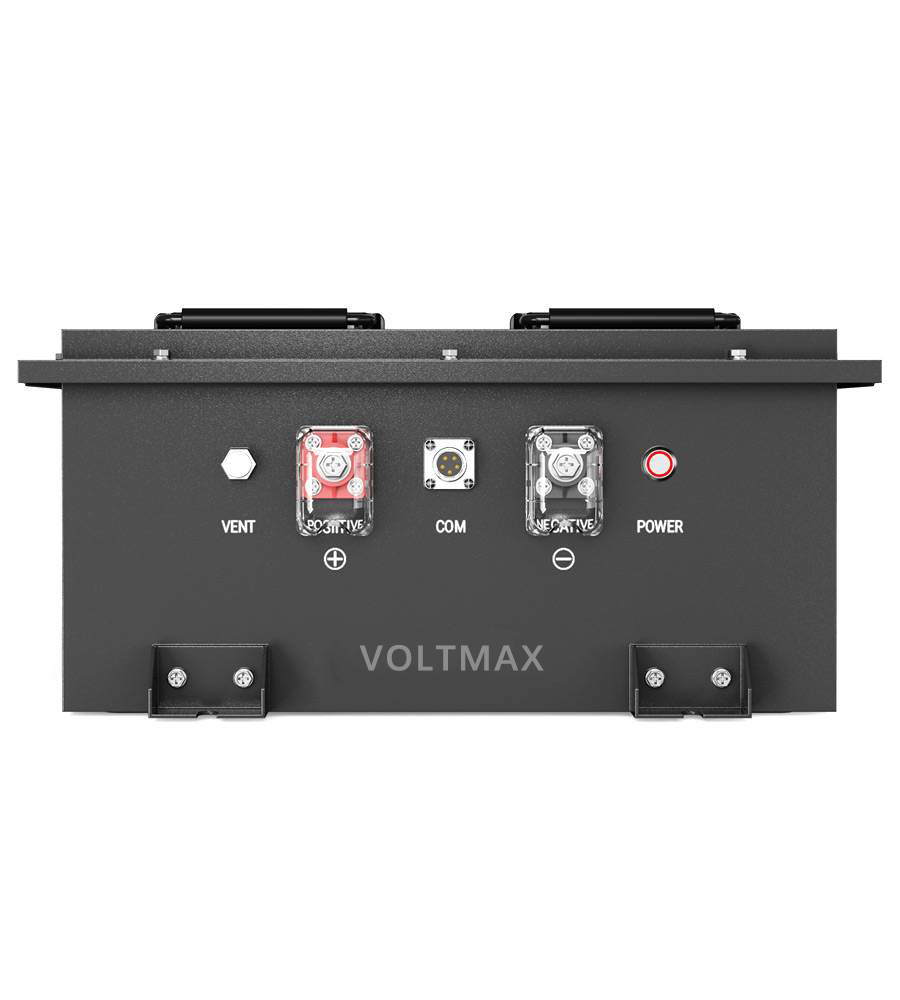

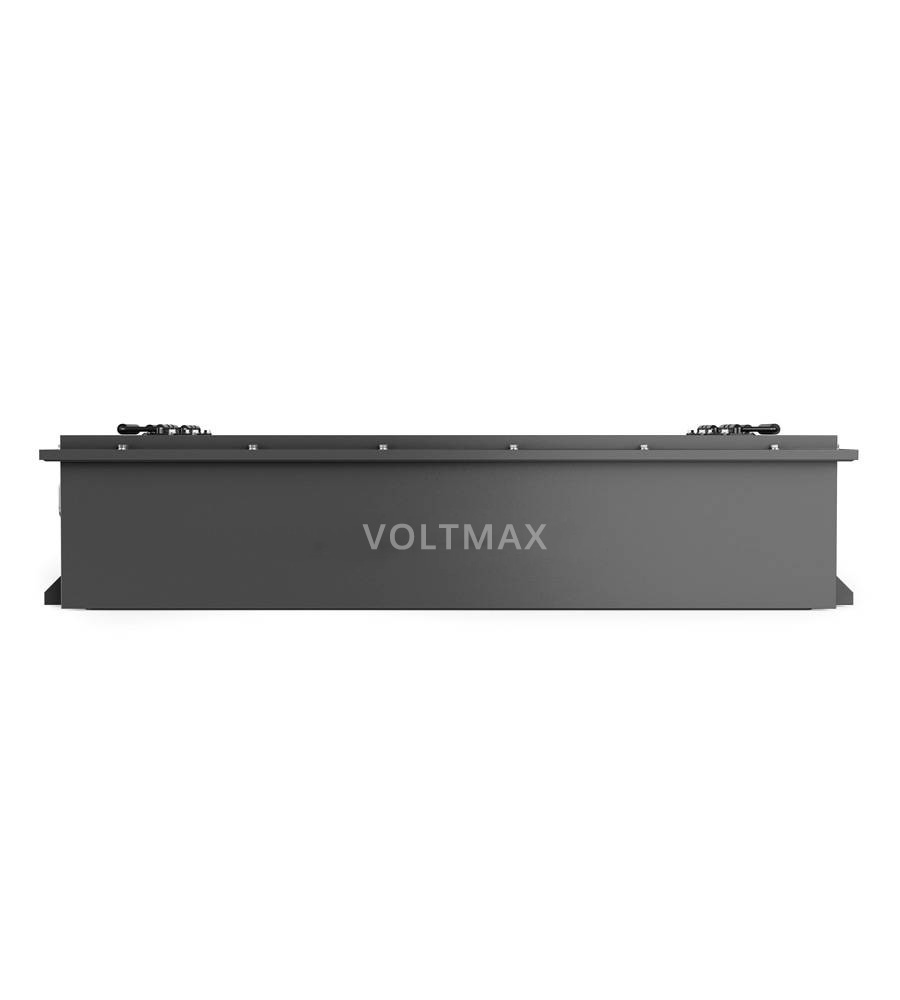

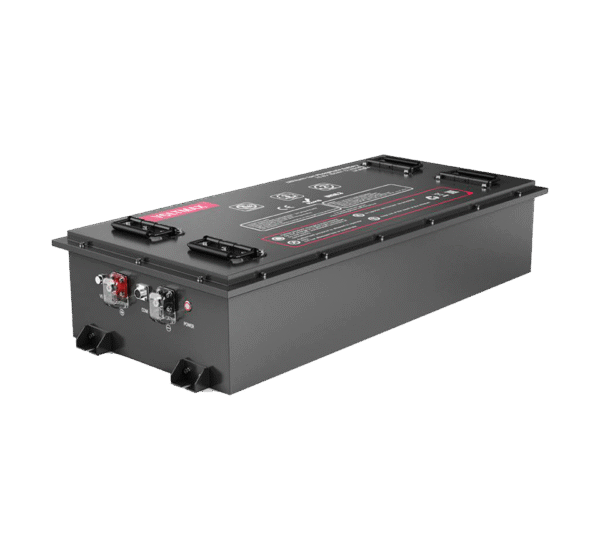

72V 160Ah golf cart lithium battery
Category: 72V Golf cart Battery
Lithium battery type: Lithium iron phosphate (LFP)
Rated voltage: 76.8V
Nominal capacity :160Ah
Nominal energy :12.28KWh
Dimensions (length * width * height) :960 × 446 × 217 mm
Weight 88Kg
IP rating: IP67
Experience the new future of electric mobility brought by the Aoge Power 72V 160Ah golf cart lithium battery. This powerful battery is specially designed for golf carts, electric tricycles and scooters. It adopts advanced lithium iron phosphate (LiFePO4) technology, providing outstanding performance, durability and safety. It is highly suitable for OEM, ODM manufacturers and wholesale purchasers who wish to enhance the competitiveness of their electric vehicle products.
Main function
High energy capacity: With a nominal capacity of 160Ah and an energy output of 12.28kWh, it ensures long battery life and high performance in various scenarios.
Ultra-long cycle life: It can support over 6,000 cycles at 80% depth of discharge (DOD), significantly reducing replacement costs and maintenance workload.
Multiple safety protections: Equipped with an intelligent battery management system (BMS), it can comprehensively prevent overcharging, overheating and short circuit risks.
Wide temperature range adaptability: The operating temperature range is from -20 °C to 65°C, suitable for various climatic and environmental conditions.
Customized solutions: We offer OEM/ODM customization services, supporting personalized functional configurations such as self-heating, Bluetooth connection, and GPS tracking.
Application scenarios
Aoge Power 72V 160Ah golf cart lithium battery is specially designed for a variety of electric vehicles such as golf carts, sightseeing low-speed vehicles (LSV), club vehicles, and electric scooters. It measures 960 x 446 x 217 mm and weighs approximately 88 kilograms. Despite its compact size, it offers powerful performance and can meet high-load operation requirements.
The battery uses high-quality lithium iron phosphate cells to maintain stable power output throughout the discharge cycle. A natural cooling system ensures optimized performance, and an advanced BMS (Battery Management System) monitors key parameters such as voltage, current, and temperature in real time.
This battery has an ultra-long design life of 20 years and comes with a 5-year warranty, ensuring durability. With an IP67 protection rating, it is dustproof and water-resistant, making it perfect for outdoor use.
Choose the 72V 160Ah golf cart lithium battery for an environmentally friendly and efficient power solution that enhances the performance of your electric vehicle while minimizing long-term costs. Contact us now to learn how our innovative battery technology can meet your specific needs!
| Characteristic | Specifications |
| Model | AG76.8160LFP-EV |
| Lithium Battery Type | Lithium Iron Phosphate (LFP) |
| Rated Voltage | 76.8V |
| Rated Capacity | 160Ah |
| Nominal Energy | 12.28KWh |
| Maximum Charging Voltage | 86.4V |
| Discharge Cut-off Voltage | 60V |
| Standard Charging Current | 30A (5.5 hours) |
| Maximum Continuous Charging Current | 160A |
| Maximum Continuous Discharging Current | 160A |
| Peak Discharging Current | 315A (for 10 seconds) |
| Dimensions [Length x Width x Height] | 960×446×217mm |
| Weight | 88kg |
| IP Rating | IP67 |
| Cycle Life | >6000 cycles (80% DOD) |
| Self-discharge | 2% (per month) |
| Charging Temperature | 0°C~60°C |
| Discharging Temperature | -20℃~65℃ |
| External Communication | RS485 / CAN bus |
| Optional Upgrades | Self-heating / Bluetooth / APP / 4G / GPS / WiFi / LCD display / RS232 / Anti-theft / Fan cooling / Heat sink / Active balancing / Solar MPPT / etc. |
| BMS | Intelligent BMS protection: overcurrent / overcharge / overdischarge / overload / overvoltage / overheating / over-temperature / low temperature / automatic balancing of lithium batteries / etc. |
| Battery Box | Metal |
| Design Life | 20 years |
| Warranty Policy | 5 years |
| Silk Screen Printing / Label / Laser Logo | Yes |
| User Manual | Yes |
| OEM / ODM | Yes |
| Shipping | Yes |
| Company Certificates | UL 1642 / IEC 62133 / CE / RoHS / UN38.3 / MSDS |
