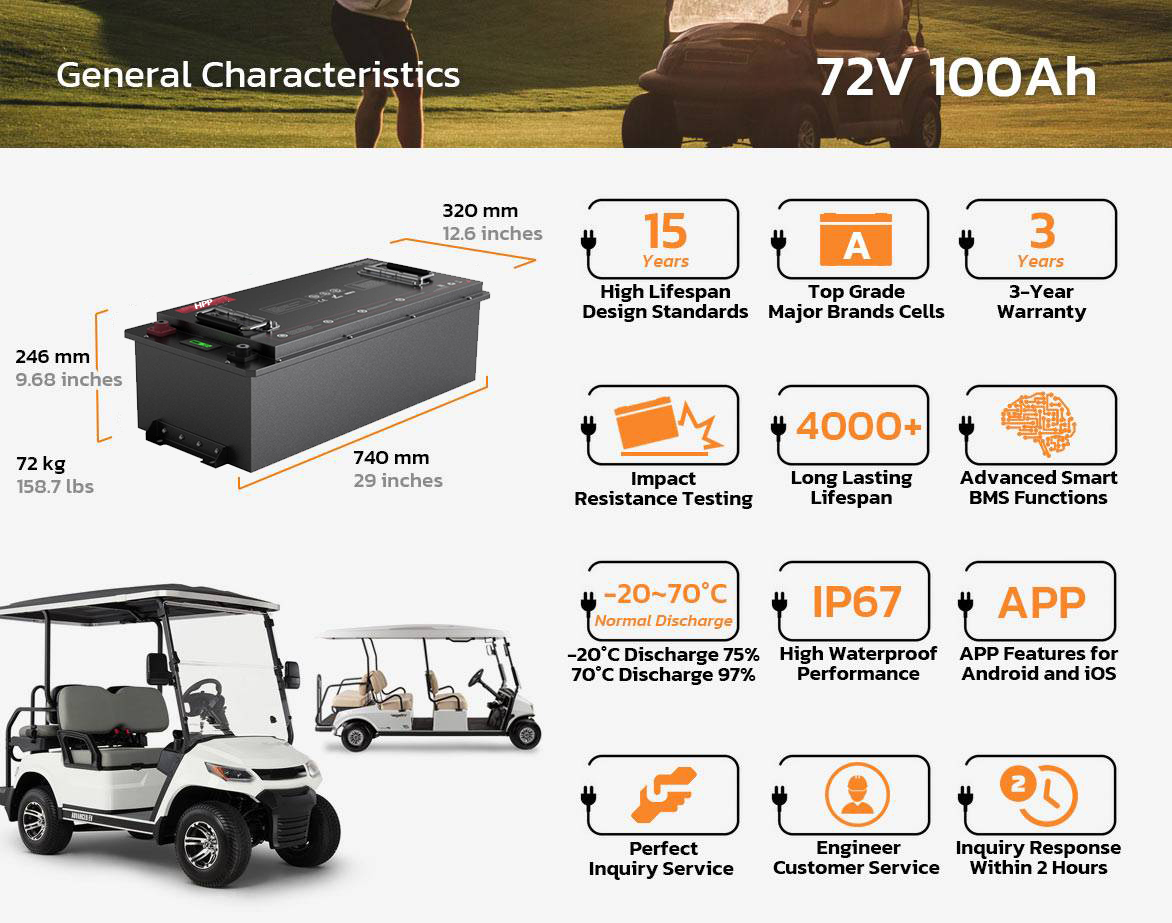

72V 100Ah lithium battery for golf carts
Category: 72v RV lithium battery
Lithium battery: Lithium iron phosphate (LFP)
Rated voltage: 72V
Rated Capacity: 105Ah
Nominal energy: 8060Wh
Dimensions (length * width * height) : 740 x 320 x 245 mm
Weight: 72 kg
IP Rating: IP65
This 72V 120Ah lithium battery is produced by Aoge Power Lithium Battery, a leading manufacturer of high-performance lithium-ion batteries in China. Specifically designed for various electric vehicles, including scooters, tricycles and rickshaws, it offers reliable performance and efficiency to meet all your energy needs.
Main Features
High Capacity: With a rated capacity of 120Ah and an energy output of 8.06 kWh, this battery can provide sufficient power to meet the demands of long-term use in demanding applications.
Durable design: With an IP65 rating, this battery is dustproof and waterproof, making it highly suitable for outdoor use in all kinds of weather conditions.
Long lifespan: Capable of exceeding 5,000 cycles at an 80% depth of discharge (DOD), this battery minimizes the need for frequent replacements, ensuring long-term reliability.
Intelligent Battery Management System (BMS): Advanced BMS can prevent overcharging, overheating and short circuits, ensuring safe operation during use.
Customizable Options: Aoge Power offers OEM and ODM services, providing customized solutions to meet specific customer requirements.
Application
72V 120Ah lithium battery is widely used and suitable for various applications, including:
Electric scooter
Electric rickshaw
Electric tricycle
Electric motorcycle
Electric bicycle
Electric cabin scooter
Low-speed vehicle (LSV)
The maximum charging voltage is 84V and the discharge cut-off voltage is 54V. This battery has been optimized for various operational requirements. It can operate from -10°C to 50°C, making it adaptable to different environments. The compact design facilitates installation and ensures your equipment operates efficiently throughout the day. Additionally, it supports fast charging, reducing the time between uses.
As a trusted manufacturer, Aoge Power is committed to providing high-quality lithium-ion batteries to enhance your operational efficiency and sustainability. The 72V 120Ah lithium battery not only reduces downtime but also helps lower operational costs due to its high efficiency and long lifespan. Investing in this battery means choosing a reliable power solution that meets the demands of modern electric vehicles and supports your business growth and sustainability goals.
| LFP BATTERY TO REPLACE VRLA BATTERY FOR GOLF CART -AOGE 72V LPGC SERIES | |
| MODEL | AG72100LFP-LPGC |
| Rated Voltage | 76.8V |
| Rated Capacity | 105Ah |
| Rated Energy | 8060Wh |
| MAX.Charge Voltage | 87.6V |
| RECMD charge current(0.2C) | 20A |
| RECMD charge METHOD | At 0℃-45℃, Set up charge voltage at 87.6V, and initial charge-current at 0.2C; change battery continuously till the current drops less 0.02C |
| Max.Charge Current(0.5C) | 100A |
| Discharge CUT-OFF Volt. | 60V |
| RECMD discharge current(0.2C) | 20A |
| Max.Discharge Current(1C) | 100A |
| Peak discharge current(2C) (MAX. 3 second) | 300A |
| Dimensions(L*W*H*TH)MM | 740*320*245 |
| Weight(APPROX)KG±3% | 72KG |
| Max. Parallel and Series QTY | NOT RECOMMENDED |
| IP Rating | IP65 |
| Cycle Life | >5000 cycles @0.2C Charging/Discharging (DOD 80%) |
| Self-Discharge | ≦2% (per month) |
| Charge/storage Temperature | 0°C ~ 45°C @60±25% Relative Humidity |
| Discharge Temperature | -20°C ~ 60°C @60±25% Relative Humidity |
| Optional Functions | Bluetooth / App / WiFi / 4G / GPS / Self-heating / LCD/RS485/RS232/CAN-BUS/etc. |
| JBD/DALY BMS FUNCTION | Over current/Over charge/Over discharge/Over load/Over voltage/Low voltage/Over heat/Over temperature/Low temperature/etc. |
| Terminal | ACTL PLUG |
| Battery Case | METAL WITH LCD |
| Design Life/WARRANTY | 10 Years/3 YEARS |
