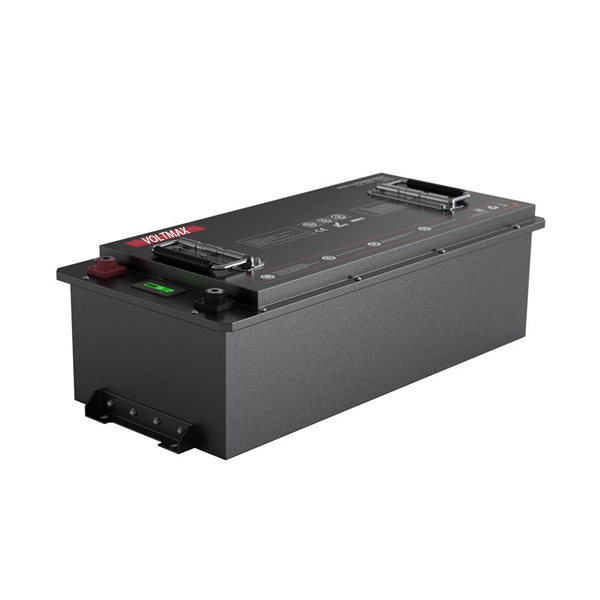

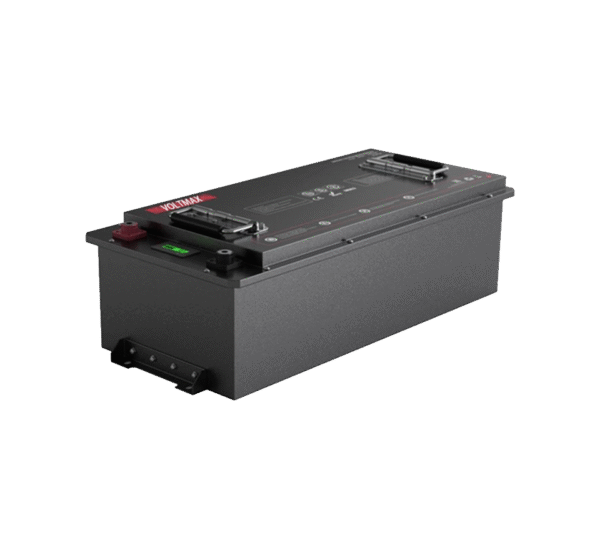

48V (51.2V) 100Ah lithium battery
Category: 48v RV lithium battery
Lithium battery: Lithium iron phosphate (LFP)
Rated voltage: 51.2V
Capacity:100Ah
Nominal energy: 2560Wh
Dimensions (length x width x height):620×290×185 mm
Weight: 43 KG/94.8 lb
IP Rating: IP65
Enhance the performance of electric vehicles. 48V (51.2V) 100Ah golf cart lithium battery produced by Aoge Power. This high-capacity lithium battery is specifically designed for a range of applications including golf carts, electric tricycles and scooters, featuring outstanding energy efficiency and reliability. It is highly suitable for OEM, ODM and wholesale buyers seeking reliable power supply solutions.
Key features:
· High energy output: With a rated capacity of 105Ah and an energy output of 2560Wh, this battery can provide up to 80 kilometers (50 miles on a full charge).
· Outstanding cycle life: The designed service life exceeds 4,000 cycles when the depth of discharge (DOD) reaches 80%, significantly reducing the need for frequent replacement.
· Durable building: The battery has an IP65 rating, which can prevent dust and water from entering and is suitable for use in challenging environments.
· Intelligent Battery Management System (BMS) : Equipped with an intelligent BMS, it can prevent overcharging, overheating and short circuits, ensuring safe operation.
· Multi-functional connection options: Supports optional functions such as Bluetooth, WiFi, and LCD display to enhance monitoring and control.
The 48V (51.2V) 100Ah golf cart lithium battery is meticulously crafted and is suitable for a wide range of applications including golf carts, travel LSVS, club vehicles, and electric scooters. Compact in size, measuring 610×290×185 mm and weighing approximately 43 kg, this battery combines a lightweight design with powerful performance. This battery adopts high-quality LiFePO4 battery, which can ensure stable power output throughout the entire discharge cycle. The sturdy metal casing offers durability, while the advanced BMS continuously monitors key parameters such as voltage, current and temperature. Our lithium batteries have a design life of up to 20 years and are guaranteed for 5 years, ensuring long-term reliability. The IP67 rating ensures that it is dust-proof and can withstand immersion in water, making it very suitable for outdoor use. Choose the48V (51.2V) 100Ah golf cart lithium battery to find an environmentally friendly power solution that can enhance the performance of your electric vehicle while minimizing long-term costs. Contact us immediately to learn how we can leverage our innovative battery technology to meet your specific requirements!
| LFP TO REPLACE VRLA BATTERY FOR RECREATIONAL VEHICLE/GOLF CART -AOGE 48V LPRV/LPGC SERIES | |
| MODEL | AG48100(II)LFP-LPRV/LPGC |
| Rated Voltage | 51.2V |
| Rated Capacity | 100Ah |
| Rated Energy | 2560Wh |
| MAX.Charge Voltage | 56-58.4V |
| RECMD charge current(0.2C) | 20A |
| RECMD charge METHOD | At 0℃-45℃, Set up charge voltage at 58.4V, and initial charge-current at 0.2C; change battery continuously till the current drops less 0.02C |
| Max.Charge Current(0.5C) | 100A |
| Discharge CUT-OFF Volt. | 40V |
| RECMD discharge current(0.2C) | 20A |
| Max.Discharge Current(1C) | 100A |
| Peak discharge current(2C) (MAX. 3 second) | 200A |
| Dimensions(L*W*H*TH)MM | 610*290*185 |
| Weight(APPROX)KG±3% | 43KG |
| Max. Parallel and Series QTY | 4P/4S |
| IP Rating | IP65 |
| Cycle Life | >4000 cycles @0.2C Charging/Discharging (DOD 80%) |
| Self-Discharge | ≦2% (per month) |
| Charge/storage Temperature | 0°C ~ 45°C @60±25% Relative Humidity |
| Discharge Temperature | -20°C ~ 60°C @60±25% Relative Humidity |
| Optional Functions | Bluetooth / App / WiFi / 4G / GPS / Self-heating / LCD/RS485/RS232/CAN-BUS/etc. |
| JBD/DALY BMS FUNCTION | Over current/Over charge/Over discharge/Over load/Over voltage/Low voltage/Over heat/Over temperature/Low temperature/etc. |
| Terminal | M8 |
| Battery Case | METAL |
| Design Life/WARRANTY | 10 Years/3 YEARS |
