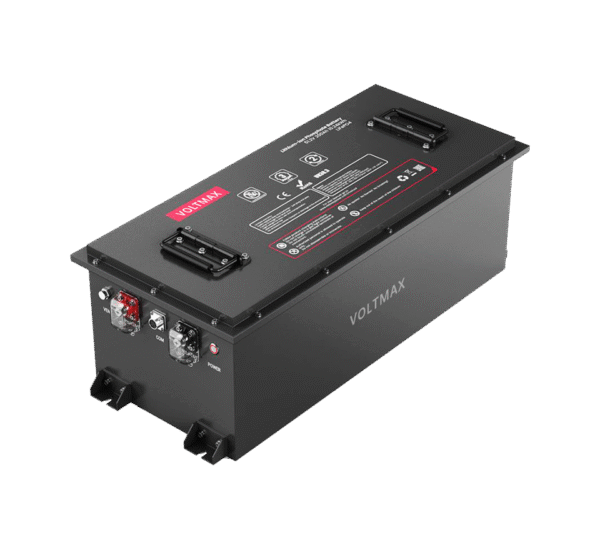

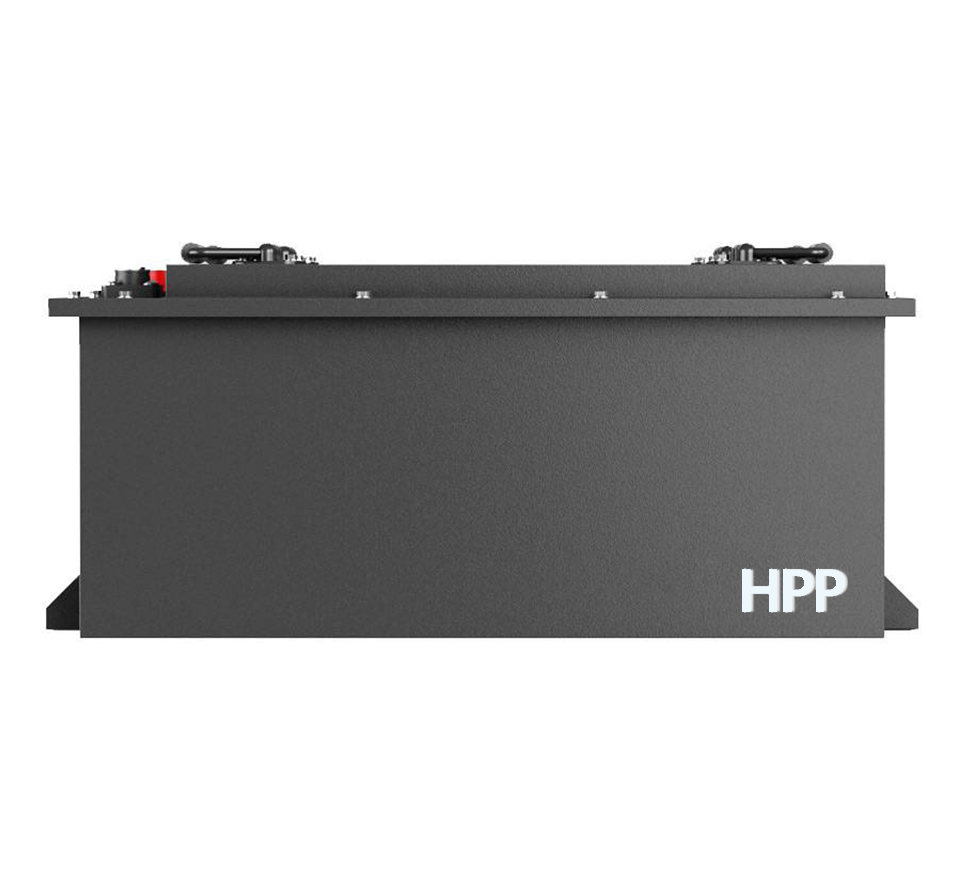

48V 200Ah lithium golf cart battery (short version)
Category: 48V Golf cart Battery
Lithium battery type: Lithium iron phosphate (LFP)
Rated voltage: 51.2V
Nominal capacity :210Ah
Nominal energy : 10.75KWh
Dimensions (length * width * height) ：750 × 330 × 273 mm
Weight ：79Kg
IP rating: IP67
Aoge Power48V 200Ah golf cart lithium battery, bringing a comprehensive upgrade to your electric vehicle experience. This high-capacity battery is specially designed for golf carts, electric tricycles and electric scooters. It adopts advanced lithium iron phosphate (LiFePO4) technology, featuring outstanding efficiency and long lifespan. It is an ideal choice for Oems, ODMs and wholesale purchasers seeking reliable power solutions.
Core feature
High energy capacity: Nominal capacity 210Ah, energy output 10.75kWh, providing longer driving range and better performance for various electric vehicles.
Long cycle life: Designed to support over 6,000 cycles at 80% discharge depth (DOD), significantly reducing replacement costs and maximizing usage time.
Reliable and safe features: Equipped with an intelligent battery management system (BMS), it can prevent overcharging, overheating and short circuits, ensuring safe operation.
Wide operating temperature range: Operates efficiently within the temperature range of -20°C to 60°C, suitable for diverse climates and environmental conditions.
Customization options: Support OEM/ODM customization, and can offer personalized function configurations such as self-heating, Bluetooth connection, GPS tracking, etc.
Product Description:
Aoge Power 48V 200Ah golf cart lithium battery is specially designed for golf carts, sightseeing low-speed vehicles (LSV), club cars, and electric scooters, etc., providing reliable power support. Its dimensions are 750 x 330 x 273 mm and its weight is approximately 79 kilograms. The compact design incorporates powerful performance, meeting the demands of high-load operations.
It uses high-quality lithium iron phosphate cells to ensure stable power output during discharge. The sturdy metal casing enhances durability, and the advanced BMS continuously monitors key parameters such as voltage, current, and temperature.
This lithium battery has a design lifespan of 20 years and offers a 5-year warranty, ensuring long-term reliability. Its IP67 protection level makes it completely dustproof and capable of withstanding water immersion, making it ideal for outdoor use.
Choosing the 48V 200Ah golf cart lithium battery means choosing an environmentally friendly power solution – not only enhancing the performance of electric vehicles, but also reducing long-term usage costs. Contact us immediately to learn how our innovative battery technology can meet your specific needs!
| 48V 160AH Lithium Battery | Specifications |
| Applications | Golf carts, sightseeing vehicles, club cars, 2-3 wheel electric scooters, electric rickshaws, electric tricycles, floor scrubbers, floor cleaners, AGV, LGV, RGV, AMR, electric forklifts, traction motors, etc. |
| Lithium Battery Type | Lithium Iron Phosphate (LFP) |
| Model | AG48200LFP-EV |
| Rated Voltage | 51.2V |
| Rated Capacity | 200Ah |
| Nominal Energy | 10.75KWh |
| Maximum Charging Voltage | 58.4V |
| Discharge Cut-off Voltage | 40V |
| Standard Charging Current | 40A (5 hours) |
| Maximum Continuous Charging Current | 180A |
| Maximum Continuous Discharging Current | 180A |
| Peak Discharging Current | 200A (for 30 seconds) |
| Dimensions [Length x Width x Height] | 750×330×273mm |
| Weight | 79kg |
| IP Rating | IP67 |
| Maximum Series Quantity | 4S |
| Maximum Parallel Quantity | 4P |
| Cycle Life | >6000 cycles (80% DOD) |
| Self-discharge | 2% (per month) |
| Charging Temperature | 0°C~60°C |
| Discharging Temperature | -20℃~65℃ |
| Storage Stability | 0°C~35°C |
| Charger | Optional |
| LCD Display | Optional |
| Switch | Yes |
| External Communication | RS485 / CAN bus |
| Optional Upgrades | Self-heating / Bluetooth / APP / 4G / GPS / WiFi / LCD display / RS232 / Anti-theft / Fan cooling / Heat sink / Active balancing / Solar MPPT / etc. |
| BMS | Intelligent BMS protection: overcurrent / overcharge / overdischarge / overload / overvoltage / undervoltage / overheating / over-temperature / low temperature / automatic balancing of lithium batteries / etc. |
| Battery Monitoring | Bluetooth APP |
| Terminal | M8 |
| Internal Fixing | Metal bracket or EVA sponge |
| Battery Box | Metal |
| Design Life | 20 years |
| Warranty Policy | 5 years |
| Silk Screen Printing / Label / Laser Logo | Yes |
| User Manual | Yes |
| OEM / ODM | Yes |
| Shipping | Yes |
| Company Certificates | UL 1642 / UL 2054 / IEC 62133 / IEC 62619 / FCC CE / RoHS Compliant Middle East: ESMA / SASO South Africa: SABS Material Safety Data Sheet (MSDS) / UN38.3 |
