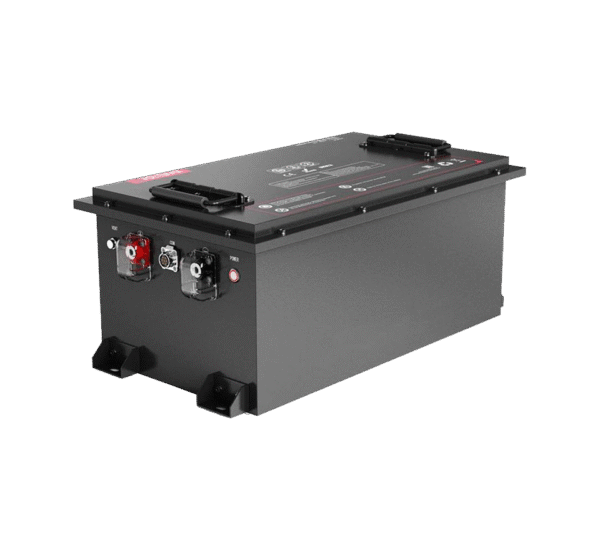

48V 160Ah golf cart lithium battery (BMS200A)
Category: 48V Golf cart Battery
Lithium battery type: Lithium iron phosphate (LFP)
Rated voltage: 51.2V
Nominal capacity :160Ah
Nominal energy : 8.19KWh
Dimensions (length * width * height) ：800 × 332 × 332 mm
Weight ：72Kg
IP rating: IP67
Aoge power Introducing a upgrade your electric vehicle with a 48V (51.2V) 160Ah golf cart lithium battery. This high-performance battery is specially designed for golf carts, electric tricycles and various scenarios, offering outstanding energy efficiency and reliability. It is an ideal choice for Oems, ODMs and wholesale purchasers seeking reliable power solutions.
Core feature
High energy capacity: Nominal capacity 160Ah, energy output 8.19kWh, full charge range can reach 130 to 180 kilometers (80 to 111 miles).
Long cycle life: Designed to support over 6,000 cycles at 80% discharge depth (DOD), ensuring long lifespan and reducing replacement costs.
Advanced BMS protection: Equipped with an intelligent battery management system (BMS), it can prevent overcharging, overheating and short circuits.
Wide operating temperature range: Operates efficiently within the temperature range of -20°C to 60°C, suitable for various environments.
Customization options: Support OEM/ODM customization, offering personalized configurations such as self-heating, Bluetooth connection, GPS tracking, etc.
Product Description:
Aoge power 48V (51.2V) 160Ah golf cart lithium battery is meticulously designed for various applications such as golf carts, club vehicles, sightseeing vehicles, and electric scooters. The battery measures 800 x 332 x 332 mm and weighs approximately 72 kilograms. It combines a compact design with powerful performance.
It uses high-quality lithium iron phosphate (LiFePO4) cells to ensure stable power output during discharge. The sturdy metal casing enhances durability, and the advanced BMS continuously monitors key parameters such as voltage, current, and temperature.
This lithium battery has a design lifespan of 20 years and comes with a 5-year warranty. It has an IP67 protection rating, making it completely dustproof and capable of withstanding water immersion, making it ideal for outdoor use.
Choosing the 48V (51.2V) 160Ah golf cart lithium battery means choosing an environmentally friendly power solution – not only enhancing the performance of electric vehicles, but also reducing long-term usage costs. Contact us immediately to learn how our innovative battery technology can meet your specific needs!
| 48V 160AH Lithium Battery | Specifications |
| Applications | Golf carts, sightseeing vehicles, club cars, 2-3 wheel electric scooters, electric rickshaws, electric tricycles, floor scrubbers, floor cleaners, AGV, LGV, RGV, AMR, electric forklifts, traction motors, etc. |
| Lithium Battery Type | Lithium Iron Phosphate (LFP) |
| Model | AG51.2160LFP-EV |
| Rated Voltage | 51.2V |
| Rated Capacity | 160Ah |
| Nominal Energy | 8.19KWh |
| Maximum Charging Voltage | 58.4V |
| Discharge Cut-off Voltage | 40V |
| Standard Charging Current | 22A (7.5 hours) |
| Maximum Continuous Charging Current | 100A |
| Maximum Continuous Discharging Current | 100A |
| Peak Discharging Current | 200A (for 10 seconds) |
| Dimensions [Length x Width x Height] | 800×332×332mm |
| Weight | 72kg |
| IP Rating | IP67 |
| Maximum Series Quantity | 4S |
| Maximum Parallel Quantity | 4P |
| Cycle Life | >6000 cycles (80% DOD, 0.2C) |
| Self-discharge | 2% (per month) |
| Charging Temperature | 0°C~60°C |
| Discharging Temperature | -20℃~65℃ |
| Storage Stability | 0°C~35°C |
| Charger | Optional |
| LCD Display | Optional |
| Switch | Yes |
| External Communication | RS485 / CAN bus |
| Optional Upgrades | Self-heating / Bluetooth / APP / 4G / GPS / WiFi / LCD display / RS232 / Anti-theft / Fan cooling / Heat sink / Active balancing / Solar MPPT / etc. |
| BMS | Intelligent BMS protection: overcurrent / overcharge / overdischarge / overload / overvoltage / undervoltage / overheating / over-temperature / low temperature / automatic balancing of lithium batteries / etc. |
| Battery Monitoring | Bluetooth APP |
| Terminal | M8 |
| Internal Fixing | Metal bracket or EVA sponge |
| Battery Box | Metal |
| Design Life | 20 years |
| Warranty Policy | 5 years |
| Silk Screen Printing / Label / Laser Logo | Yes |
| User Manual | Yes |
| OEM / ODM | Yes |
| Shipping | Yes |
| Company Certificates | UL 1642 / UL 2054 / IEC 62133 / IEC 62619 / FCC CE / RoHS Compliant Middle East: ESMA / SASO South Africa: SABS Material Safety Data Sheet (MSDS) / UN38.3 |
