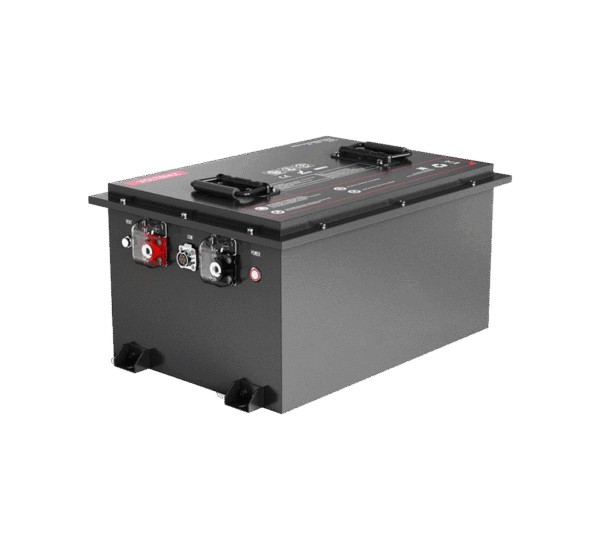

48V 100Ah golf cart lithium battery (BMS 31)
Category: 48V Golf cart Battery
Lithium battery type: Lithium iron phosphate (LFP)
Rated voltage: 48V
Nominal capacity :100Ah
Nominal energy : 5.37KWh
Dimensions (length * width * height) ：565 × 330 × 255 mm
Weight ：46Kg
IP rating: IP67
AOGE POWER we have launched a 48V (51.2V) 100Ah golf cart lithium battery, which is a high-performance power solution designed for Oems, ODMs and wholesale purchasers. This lithium iron phosphate (LiFePO4) battery is suitable for a variety of scenarios such as golf carts and electric scooters, providing reliable power and outstanding performance.
Core feature
High energy capacity: Nominal capacity 105Ah, energy output 5.37kWh, ensuring a significant extension of the driving range of electric vehicles and enhancing operational efficiency.
Sturdy structure: Utilizes a metal casing, with IP67 protection level, providing excellent dust and water resistance. It can ensure a long service life even in complex environments.
Long cycle life: Designed to support over 6,000 cycles at 80% discharge depth (DOD), significantly reducing the replacement cost compared to traditional lead-acid batteries.
Intelligent Battery Management System (BMS): The advanced BMS offers comprehensive protection against overcharging, overdischarging and short circuits, ensuring safe operation throughout the entire lifecycle.
Customization options: Support for Bluetooth monitoring, self-heating function, and various communication protocols, among other optional features, to meet specific requirements.
Product Description:
AOGE POWER 48V (51.2V) 100Ah golf cart lithium battery is specially designed to provide reliable power for various electric vehicles and equipment. This lithium iron phosphate (LiFePO4) battery has a nominal voltage of 51.2V and combines excellent energy density and efficiency. Its dimensions are 565 x 330 x 255 mm and weighs approximately 46 kilograms, suitable for various scenarios such as golf carts, electric tricycles, and mobility vehicles.
The battery can operate efficiently within a wide temperature range of -20°C to 60°C, performing well both indoors and outdoors. The natural cooling system maintains optimal performance without the need for additional cooling, further enhancing reliability.
The maximum continuous charging current of this battery is 150A, and the peak discharge current is 315A. It supports high-load applications while ensuring safety through intelligent BMS. The BMS monitors key parameters such as voltage, current, and temperature in real time to ensure safe operation.
Choosing the 48V (51.2V) 100Ah golf cart lithium battery not only provides a reliable power source but also contributes to sustainable development with its environmentally friendly design. The long lifespan reduces the need for frequent replacements, ultimately lowering the total cost of ownership (TCO).
This efficient, powerful, and environmentally friendly solution is specifically tailored to meet your electric vehicle needs.
| 48V 100AH Lithium Battery | Specifications |
| Lithium Battery Type | Lithium Iron Phosphate (LFP) |
| Model | AG48100LFP-EV |
| Rated Voltage | 48V |
| Rated Capacity | 100Ah |
| Nominal Energy | 5.37KWh |
| Maximum Charging Voltage | 58.4V |
| Discharge Cut-off Voltage | 40V |
| Standard Charging Current | 22A (5 hours) |
| Maximum Continuous Charging Current | 150A |
| Maximum Continuous Discharging Current | 150A |
| Peak Discharging Current | 315A (for 30 seconds) |
| Dimensions [Length x Width x Height] | 565×330×255mm |
| Weight | 46kg |
| IP Rating | IP67 |
| Maximum Series Quantity | 4S |
| Maximum Parallel Quantity | 4P |
| Cycle Life | >6000 cycles (80% DOD, 0.2C) |
| Self-discharge | 2% (per month) |
| Charging Temperature | 0°C~60°C |
| Discharging Temperature | -20℃~65℃ |
| Storage Stability | 0°C~35°C |
| Charger | Optional |
| LCD Display | Optional |
| Switch | Yes |
| External Communication | RS485 / CAN bus |
| Optional Upgrades | Self-heating / Bluetooth / APP / 4G / GPS / WiFi / LCD display / RS232 / Anti-theft / Fan cooling / Heat sink / Active balancing / Solar MPPT / etc. |
| BMS | Intelligent BMS protection: overcurrent / overcharge / overdischarge / overload / overvoltage / undervoltage / overheating / over-temperature / low temperature / automatic balancing of lithium batteries / etc. |
| Battery Monitoring | Bluetooth APP |
| Terminal | M8 |
| Internal Fixing | Metal bracket or EVA sponge |
| Battery Box | Metal |
| Design Life | 20 years |
| Warranty Policy | 5 years |
| Silk Screen Printing / Label / Laser Logo | Yes |
| User Manual | Yes |
| OEM / ODM | Yes |
| Shipping | Yes |
| Company Certificates | UL 1642 / UL 2054 / IEC 62133 / IEC 62619 / FCC CE / RoHS Compliant Middle East: ESMA / SASO South Africa: SABS Material Safety Data Sheet (MSDS) / UN38.3 |
