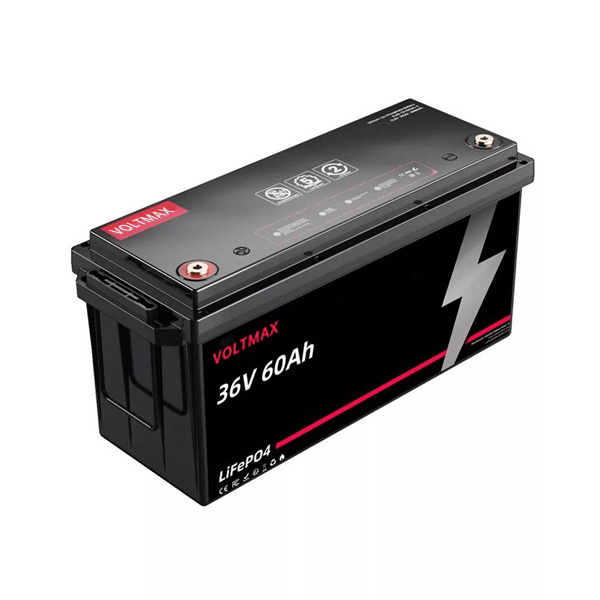

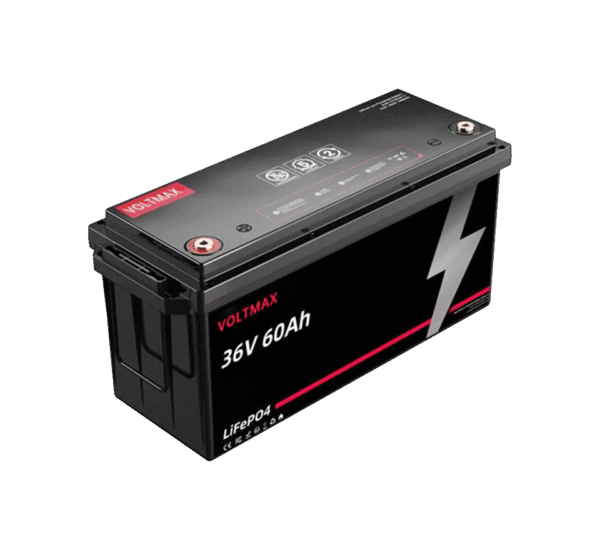

36V 60Ah lithium battery
Category: 36v RV lithium battery
Battery type: LiFePO4Voltage: 38.4V
Capacity:60Ah
Nominal energy: 2304Wh
Charging voltage: 43.8V
Discharging voltage: 30V
Continuous charging current: 60A
Continuous discharging current: 60A
Dimensions (length x width x height):500×185×240 mm
Weight: 15 KG/33.1 lb
IP Rating: IP65
The 36V 60Ah lithium battery Aoge Power high-performance energy solution is specifically designed for applications such as towing motors, Marine use, and off-grid systems. By leveraging the advanced LiFePO4 technology, this battery offers a nominal energy output of 2304Wh. It is highly suitable for OEM/ODM and wholesale buyers, offering customization options and reliable performance.
Key features:
High energy capacity: Rated capacity is 60Ah, providing 2304Wh of energy, making it highly suitable for powering trolling motors, electric vehicles, and renewable energy systems.
Long cycle life: Designed for 5000 cycles with a discharge depth (DOD) of 80%, ensuring excellent lifespan and cost-effectiveness.
Advanced BMS protection: Equipped with an intelligent battery management system (BMS) that can prevent overcharging, overdischarging, and short circuits, thereby enhancing safety.
IP67 waterproof rating: The battery’s protection level is IP67, capable of withstanding harsh environmental conditions, suitable for marine applications.
Compact and lightweight design: Weighing only 15 Kg (33.1 pounds) and measuring 500 x 185 x 240 mm, this battery is easy to install and transport.
Product description
36V 60Ah lithium battery, a versatile power solution, is specially designed for demanding applications such as trolling motor, marine systems, and off-grid power setups. This battery features high-quality lithium iron phosphate batteries, providing a rated voltage of 38.4V and an impressive energy capacity of 2304Wh, making it an ideal choice for powering various devices. It is specifically designed for efficient operation under various conditions, capable of charging within the following temperature ranges: 0°C to 60°C, and -20°C and 65°C. The self-discharge rate remains at 3% per month, allowing for extended storage without capacity loss. The maximum continuous charging and discharging current is 60A, enabling this battery to effectively meet large power demands. The durable ABS plastic casing ensures impact resistance while maintaining a lightweight shape. For OEM/ODM customers, we offer a wide range of customization options, including screen-printed labels and user manuals.
| LFP TO REPLACE VRLA BATTERY FOR RECREATIONAL VEHICLE -AOGE 36V LPRV SERIES | |
| MODEL | AG3660LFP-LPRV |
| Rated Voltage | 38.4V |
| Rated Capacity | 60Ah |
| Rated Energy | 2304Wh |
| MAX.Charge Voltage | 32-43.8V |
| RECMD charge current(0.2C) | 12A |
| RECMD charge METHOD | At 0℃-45℃, Set up charge voltage at 43.8V, and initial charge-current at 0.2C; change battery continuously till the current drops less 0.02C |
| Max.Charge Current(0.5C) | 60A |
| Discharge CUT-OFF Volt. | 30V |
| RECMD discharge current(0.2C) | 12A |
| Max.Discharge Current(1C) | 60A |
| Dimensions(L*W*H*TH)MM | 500*185*240 |
| Weight(APPROX)KG±3% | 15KG |
| CELL CONSTRUCTION | 12S4P |
| Max. Parallel and Series QTY | 4P/4S |
| IP Rating | IP65 |
| Cycle Life | >5000 cycles @0.2C Charging/Discharging (DOD 80%) |
| Self-Discharge | ≦2% (per month) |
| Charge/storage Temperature | 0°C ~ 45°C @60±25% Relative Humidity |
| Discharge Temperature | -20°C ~ 60°C @60±25% Relative Humidity |
| Optional Functions | Bluetooth/App/WiFi/4G/GPS/Self-heating/LCD/RS485/RS232/CAN-BUS/etc. |
| JBD/DALY BMS FUNCTION | Over current/Over charge/Over discharge/Over load/Over voltage/Low voltage/Over heat/Over temperature/Low temperature/etc. |
| Terminal | M8 |
| Battery Case | ABS |
| Design Life/WARRANTY | 10 Years/3 YEARS |
