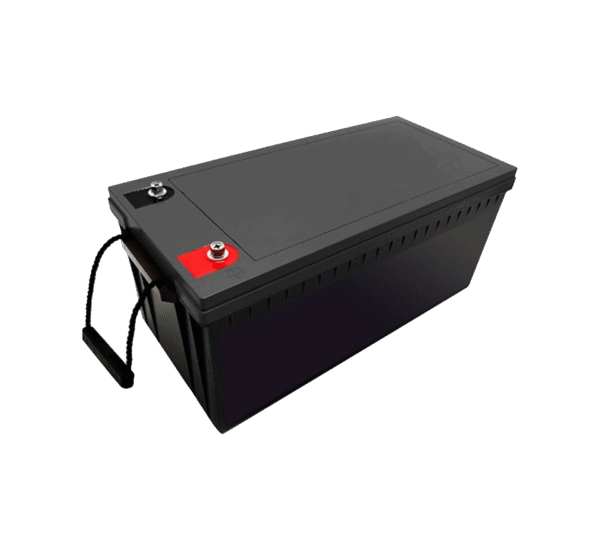

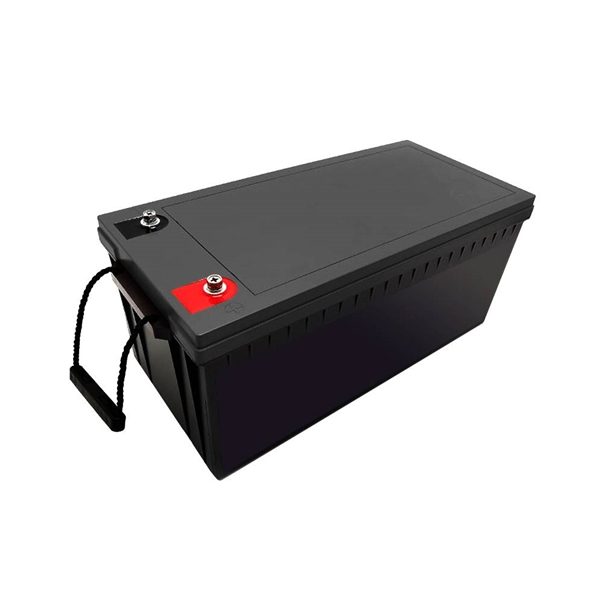

The 24V 300Ah lithium battery Aoge Power is a high-capacity energy storage solution, specifically designed for demanding applications. Utilizing advanced LiFePO4 technology, this battery has a nominal energy output of 7680Wh, making it an ideal choice for recreational vehicles, Marine systems, and solar storage. It is highly suitable for OEM, ODM and wholesale buyers seeking reliable and customizable power supply solutions.
25.6V 300Ah LFP Battery Key Features:
High energy capacity: Provides rated voltage of 25.6V and capacity of 300Ah to ensure adequate energy supply for various applications.
Long cycle life: Designed to exceed 5000 cycles. With an 80% discharge depth (DOD) and 0.5C, it has excellent service life and reliability.
Robust design: Dimensions of 635 x 245 x 220mm and weight of 45 kg make it suitable for demanding environments.
IP65 rating: Provides excellent dust and water protection, suitable for outdoor and marine applications.
Customizable options: Please choose OEM/ODM, including features such as Bluetooth connection, LCD display, and active balance technology.
Product description
The 24V 300Ah lithium battery is specifically designed to meet the energy demands of various applications such as recreational vehicles, ships, and off-grid solar systems. With a maximum continuous charging current of up to 200A and a discharging current of up to 200A, this battery can ensure efficient power management according to your needs.
This battery is made of durable ABS plastic, which can withstand harsh conditions while maintaining optimal performance. It operates effectively within a temperature range of 0°C to 60 °C for charging and -20°C to 60 °C for discharging. This battery is equipped with an advanced battery management system (BMS), which can prevent overcharging, overdischarging, short circuit and other potential dangers. The self-discharge rate is approximately 2% per month, ensuring that the battery can maintain its charge during idle periods. With a design life of up to 10 years and a warranty period of 3 years, the Aoge Power 24V 300Ah lithium battery is an excellent choice for Oems, wholesalers and those seeking high-performance energy solutions. Contact us immediately to explore customization options and bulk purchase discounts!
| LFP BATTERY TO REPLACE VRLA BATTERY FOR RECREATIONAL VEHICLE -AOGE 24V LPRV SERIES | |
| MODEL | AG24300LFP-LPRV |
| Rated Voltage | 25.6V |
| Rated Capacity | 300Ah |
| Rated Energy | 7680Wh |
| MAX.Charge Voltage | 28-29.2V |
| RECMD charge current(0.2C) | 30A |
| RECMD charge METHOD | At 0℃-45℃, Set up charge voltage at 29.2V, and initial charge-current at 0.2C; change battery continuously till the current drops less 0.02C |
| Max.Charge Current(0.5C) | 150A |
| Discharge CUT-OFF Volt. | 20V |
| RECMD discharge current(0.2C) | 30A |
| Max.Discharge Current(1C) | 150A |
| Peak discharge current(2C) (MAX. 3 second) | |
| Dimensions(L*W*H*TH)MM | 635*245*220 |
| Weight(APPROX)KG±3% | 45KG |
| Max. Parallel and Series QTY | 4P/4S |
| IP Rating | IP65 |
| Cycle Life | >5000 cycles @0.2C Charging/Discharging (DOD 80%) |
| Self-Discharge | ≦2% (per month) |
| Charge/storage Temperature | 0°C ~ 45°C @60±25% Relative Humidity |
| Discharge Temperature | -20°C ~ 60°C @60±25% Relative Humidity |
| Optional Functions | Bluetooth / App / WiFi / 4G / GPS / Self-heating / LCD/RS485/RS232/CAN-BUS/etc. |
| JBD/DALY BMS FUNCTION | Over current/Over charge/Over discharge/Over load/Over voltage/Low voltage/Over heat/Over temperature/Low temperature/etc. |
| Terminal | M8 |
| Battery Case | ABS |
| Design Life/WARRANTY | 10 Years/3 YEARS |
