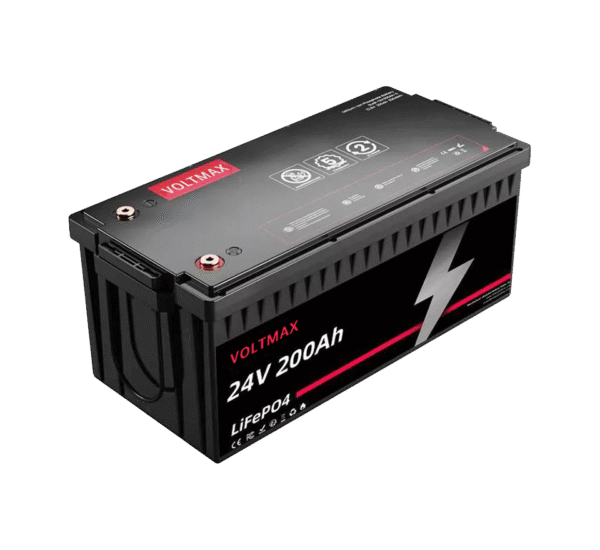

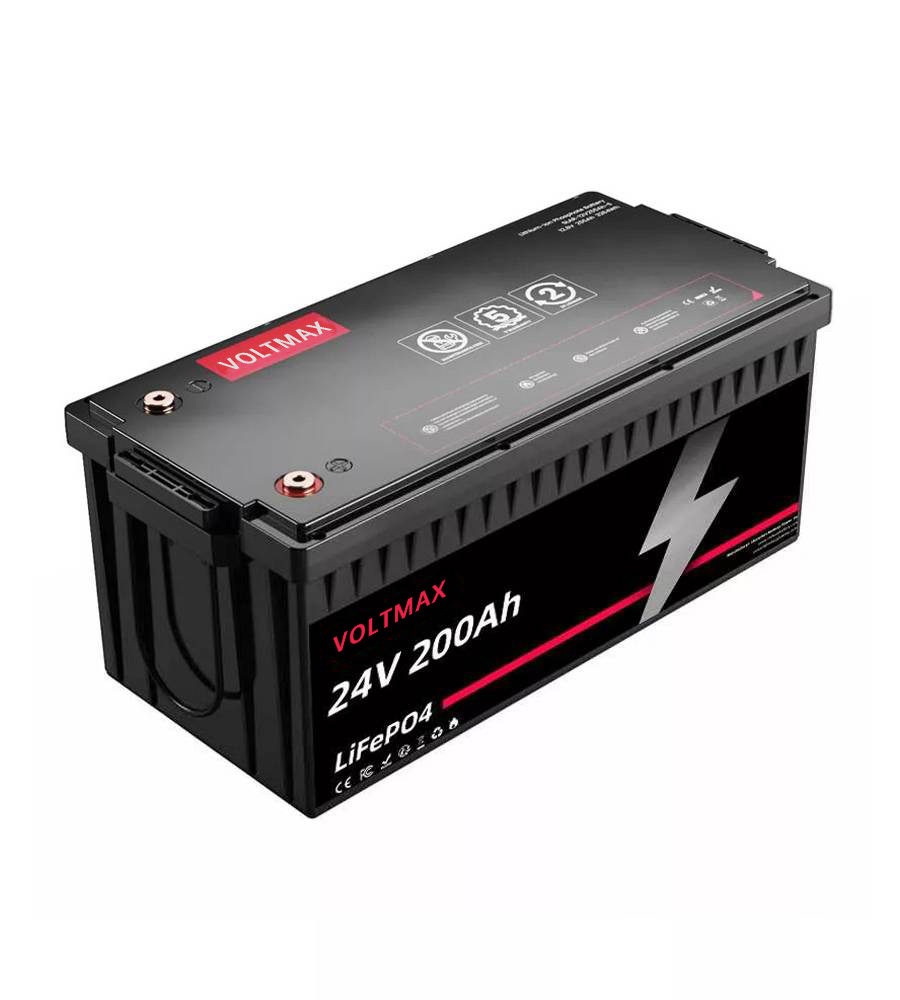

The Aoge Power 24V 200Ah lithium battery is a powerful and efficient LiFePO4 battery specifically designed for high-capacity energy storage. This battery is an ideal choice for OEM, ODM and wholesale buyers, and is highly suitable for applications such as solar systems, recreational vehicles and off-grid power solutions.
Key features:
Large capacity: With a rated capacity of 200Ah and an energy output of 5120Wh, it is suitable for demanding applications.
Long service life: It can maintain long-lasting performance even when the discharge depth (DoD) reaches 80% over 5,000 cycles.
Smart LCD display: Provides real-time charging status (SOC) information, facilitating user operation.
Powerful safety features: including a comprehensive battery management system (BMS) to enhance protection.
Multi-functional applications: Highly suitable for solar storage, Marine use, recreational vehicles and other high-power applications.
Product description
The 24V 200Ah lithium battery adopts the advanced LiFePO4 technology and, compared with traditional lead-acid batteries, offers outstanding safety and efficiency. With a nominal voltage of 25.6V, this battery supports a maximum continuous charging/discharging current of 100A, making it suitable for a variety of applications. Its dimensions (523 x 269 x 218 mm) and weight (40 kilograms /88 pounds) make it easy to install in confined Spaces. This battery can operate effectively within a wide temperature range, from -20°C to 60 °C for discharge and from 0°C to 60 °C for charging. Optional upgrades, such as Bluetooth connection and LCD display, can enhance the monitoring function. This battery has passed UL1642 and CE certifications, meeting international safety standards and is a reliable choice for your energy storage needs. If you need to place a bulk order or consult for customization, please contact us to discuss your specific requirements.
| LFP BATTERY TO REPLACE VRLA BATTERY FOR RECREATIONAL VEHICLE -AOGE 24V LPRV SERIES | |
| MODEL | AG24200LFP-LPRV |
| Rated Voltage | 25.6V |
| Rated Capacity | 200Ah |
| Rated Energy | 5120Wh |
| MAX.Charge Voltage | 28-29.2V |
| RECMD charge current(0.2C) | 20A |
| RECMD charge METHOD | At 0℃-45℃, Set up charge voltage at 29.2V, and initial charge-current at 0.2C; change battery continuously till the current drops less 0.02C |
| Max.Charge Current(0.5C) | 100A |
| Discharge CUT-OFF Volt. | 20V |
| RECMD discharge current(0.2C) | 20A |
| Max.Discharge Current(1C) | 100A |
| Peak discharge current(2C) (MAX. 3 second) | |
| Dimensions(L*W*H*TH)MM | 523*270*220 |
| Weight(APPROX)KG±3% | 40KG |
| Max. Parallel and Series QTY | 4P/4S |
| IP Rating | IP65 |
| Cycle Life | >5000 cycles @0.2C Charging/Discharging (DOD 80%) |
| Self-Discharge | ≦2% (per month) |
| Charge/storage Temperature | 0°C ~ 45°C @60±25% Relative Humidity |
| Discharge Temperature | -20°C ~ 60°C @60±25% Relative Humidity |
| Optional Functions | Bluetooth / App / WiFi / 4G / GPS / Self-heating / LCD/RS485/RS232/CAN-BUS/etc. |
| JBD/DALY BMS FUNCTION | Over current/Over charge/Over discharge/Over load/Over voltage/Low voltage/Over heat/Over temperature/Low temperature/etc. |
| Terminal | M8 |
| Battery Case | ABS |
| Design Life/WARRANTY | 10 Years/3 YEARS |
