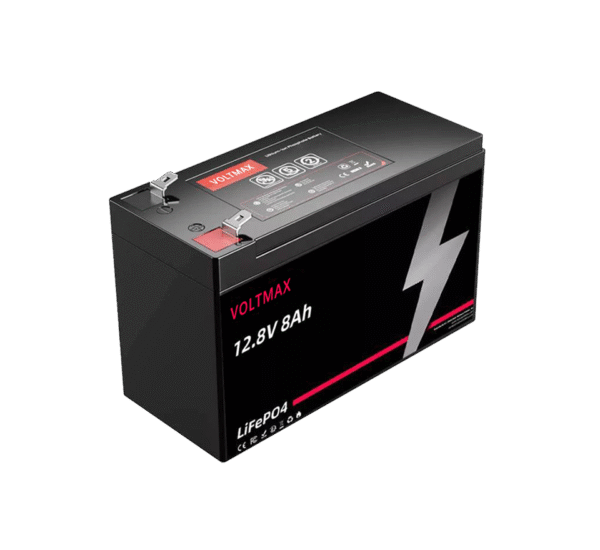

12V 8Ah lithium battery
Category: 12v RV lithium battery
Lithium battery: Lithium iron phosphate (LFP)
Rated voltage: 12.8V
Rated Capacity: 8Ah
Nominal energy: 102.4Wh
Dimensions (length * width * height) : 151 x 65 x 95 mm/5.9×2.6 × 3.7 inches
Weight: 0.9 KG / 2 pounds
IP Rating: IP65
This battery is a compact and efficient energy solution, suitable for various applications. This battery adopts a LiFePO4 (LFP) cylindrical lithium battery, which can provide a nominal energy output of 102.4Wh. It is highly suitable for OEM/ODM and wholesale buyers. It offers customization options and reliable performance, capable of providing power for power supply equipment such as alarm systems, power wheels, UPS, and fish detectors.
Key features:
Compact and lightweight: Weighing only 0.9 kg and measuring 151×65×95mm, this battery is extremely easy to install in a confined space.
Long cycle life: Designed for 4000 cycles (80% DOD ), ensuring long-term reliability and efficiency.
Built-in BMS protection: Equipped with an intelligent battery management system (BMS) to prevent overcharging, overdischarging and short circuits.
Multiple operating conditions: Operates effectively within the temperature range of -20°C to 65°C, suitable for various environments.
Multiple applications: Very suitable for use in alarm systems, marine electronic equipment, solar panel kits, UPS backup systems, etc.
Product Description:
Introduction: The 12V 8Ah lithium battery is a versatile power solution specifically designed for demanding applications. This battery features high-quality lithium iron phosphate cells, providing a rated voltage of 12.8V and an energy capacity of 102.4Wh, making it an ideal choice for powering alarm systems, fish detectors, and portable electronic devices.
It is designed to operate efficiently under various conditions and can be charged at temperatures ranging from 0°C to 60°C, as well as -20°C and 65°C. Its self-discharge rate remains at 1.5% per month, allowing for extended storage without loss of capacity.
The maximum continuous charging and discharging current is 10A, enabling it to effectively handle large power demands. The durable ABS casing ensures impact resistance while maintaining a lightweight design.
For OEM/ODM customers, we offer a wide range of customization options, including screen-printed labels and user manuals. Our flexible delivery terms (FOB, EXW, CIF) ensure that your order is prompt
| 12V8AH lithium iron phosphate | Specification |
|---|---|
| Lithium Battery | Lithium Iron Phosphate (LFP) |
| Model | AG128LFP-LPRV |
| Rated Voltage | 12.8V |
| Nominal Capacity | 8Ah |
| Nominal Energy | 102.4Wh |
| Maximum Charging Voltage | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Maximum Continuous Charging Current | 10A |
| Maximum Continuous Discharging Current | 10A |
| Dimensions [Length x Width x Height] | 151×65×95mm / 5.9×2.6×3.7 inches |
| Weight | 0.9kg / 2lbs |
| IP Rating | IP65 |
| Maximum Parallel Connections | Not supported |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >4000 cycles (80% DOD ) |
| Self-discharge | 2% (per month) |
| Charging Temperature | 0°C~60°C |
| Discharging Temperature | -20℃~65℃ |
| Optional Upgrades | Not supported |
| Charger | 14.6V 2A |
| BMS | Intelligent BMS |
| Terminal | M8 |
| Battery Case | ABS |
| Warranty Policy | 3 years |
| Silk Screen Printing / Label / Laser Logo | Yes |
| User Manual | Yes |
| OEM/ODM | Yes |
| Shipping | Yes |
| Company Certifications | UL1642, IEC62619, CE, MSDS, UN38.3 |
