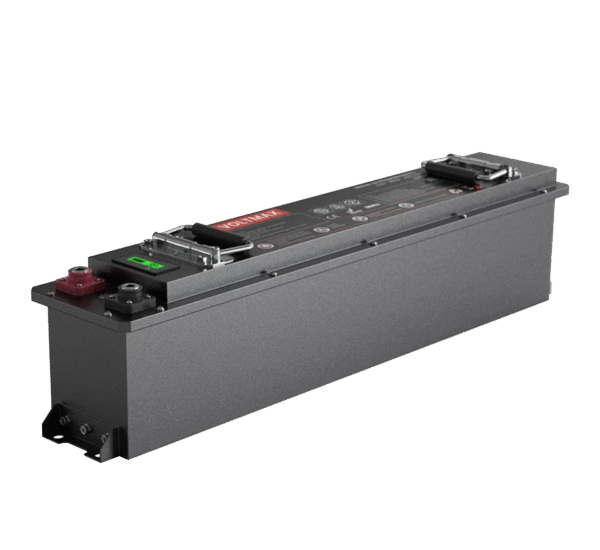

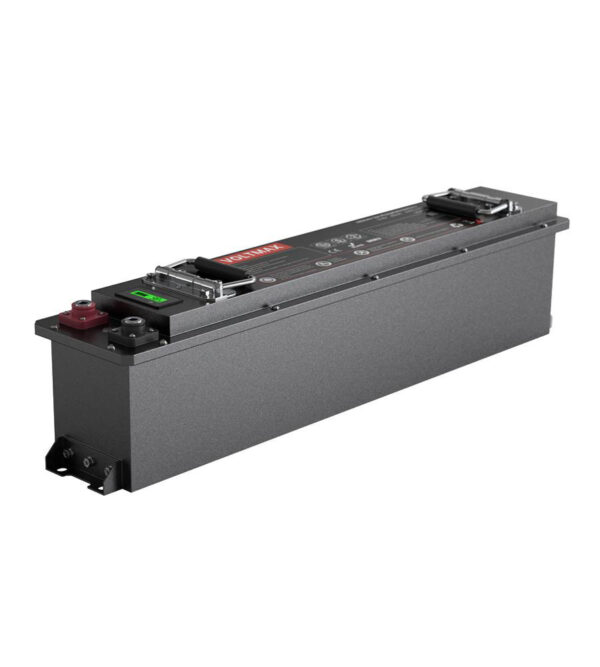

12V 180Ah lithium battery (LCD screen version)
Category: 12v RV lithium battery
Lithium battery: Lithium Iron Phosphate (LFP)
Rated voltage: 12.8V
Nominal capacity:184Ah
Rated energy: 2355.2Wh
Dimensions (length x width x height): 678×138×158mm/ (26.7×5.4×6.2 inches)
Weight: 19.5KG/43 Pounds
IP Rating: IP65
The 12V 180Ah lithium battery Aoge Power is specially designed for high-performance applications and uses LiFePO4 (LFP) cylindrical lithium batteries. The nominal energy output of this battery is 1920Wh, making it highly suitable for recreational vehicles, ships and solar systems. It is highly suitable for OEM, ODM and wholesale buyers seeking reliable energy storage solutions.
Key features:
Large capacity: Rated capacity of 180Ah, providing 2355.2Wh of energy suitable for RV, Marine applications and off-grid systems.
Long cycle life: Specifically designed for 4000 cycles (80% DOD ), ensuring durability and service life in harsh environments.
Compact design: Dimensions 678×138×158mm , with a weight of approximately 12.8 kg (28.2 pounds), can be easily installed in a confined space.
IP65 rating: Provides excellent dust and water protection, suitable for use in ships and outdoor applications.
Customizable options: Please choose OEM/ODM customization, allowing you to customize specifications such as heating function, Bluetooth connection, etc.
Product Description:
The 12V 180Ah lithium battery is a powerful and versatile energy solution suitable for various applications. Utilizing high-quality lithium iron phosphate batteries, this battery has a nominal voltage of 12.8V and an impressive energy capacity of 2355.2Wh, making it highly suitable for use in RVs, ships, and off-grid setups. This battery is specifically designed for use in various conditions, featuring a charging function ranging from 0°C to 60°C, and discharging from -20°C to 65°C. It weighs approximately 19.5 kilograms (43 pounds), combining a lightweight structure with strong power capabilities. The self-discharge rate remains at 3% per month, allowing for extended storage without losing capacity. The maximum continuous charging and discharging current is 100A, enabling it to effectively handle large power demands. The durable ABS casing provides fire protection and ensures the battery’s lifespan. For OEM/ODM customers, we offer a wide range of customization options, including screen-printed labels and user manuals. Our flexible delivery conditions (FOB, EXW, CIF) ensure that your order is promptly processed within the specified time frame of 20 days. Choose Aoge Power 12V 180Ah lithium battery (LiFePO4) to provide unparalleled performance, reliability, and intelligent technology for your energy storage solution. Utilize our reliable batteries to enhance your power capacity – your efficient energy journey begins here!
| 12V 180Ah Lithium Battery (LCD Version) | Specifications |
| Model | AG12180LFP-LPRV |
| Lithium Battery | Lithium Iron Phosphate (LFP) |
| Rated Voltage | 12.8V |
| Nominal Capacity | 180Ah |
| Nominal Energy | 2355.2Wh |
| Maximum Charging Voltage | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Maximum Continuous Charging Current | 100A |
| Maximum Continuous Discharging Current | 100A |
| Dimensions [Length x Width x Height] | 678×138×158mm / 26.7 x 5.4 x 6.2 inches |
| Weight | 19.5kg / 43lbs |
| IP Rating | IP65 (for more requirements) |
| Series and Parallel Connections | 4S1P |
| Maximum Battery Parallel Connections | 4P up to 9420.8Wh (for more requirements) |
| Internal Resistance | ≤30mΩ |
| Cycle Life | >4000 cycles (80% DOD) |
| Self-discharge | 3% (per month) |
| Charging Temperature | 0°C~60°C / 32°F~140°F |
| Discharging Temperature | -20℃~65℃ / -4°F~149°F |
| LCD Screen | Yes |
| Optional Upgrades | Bluetooth / WiFi / LED touch screen / RS485 / RS232 / CAN / 4G, 5G / GPS / APP |
| Charger | High-current fast charger |
| BMS | Intelligent BMS protection |
| Terminal | M8 |
| Battery Case | ABS (flame-retardant plastic) |
| Warranty Policy | 3 years |
| Silk Screen Printing / Label / Laser Logo | Yes |
| User Manual / Warranty Card | Yes |
| Customization / OEM / ODM | Yes |
| Shipping | Yes |
| Company Certifications | IEC, UN38.3, MSDS (for more requirements) |
