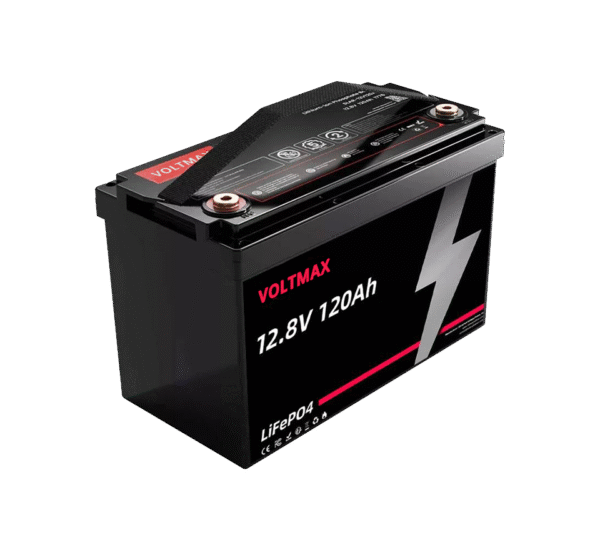

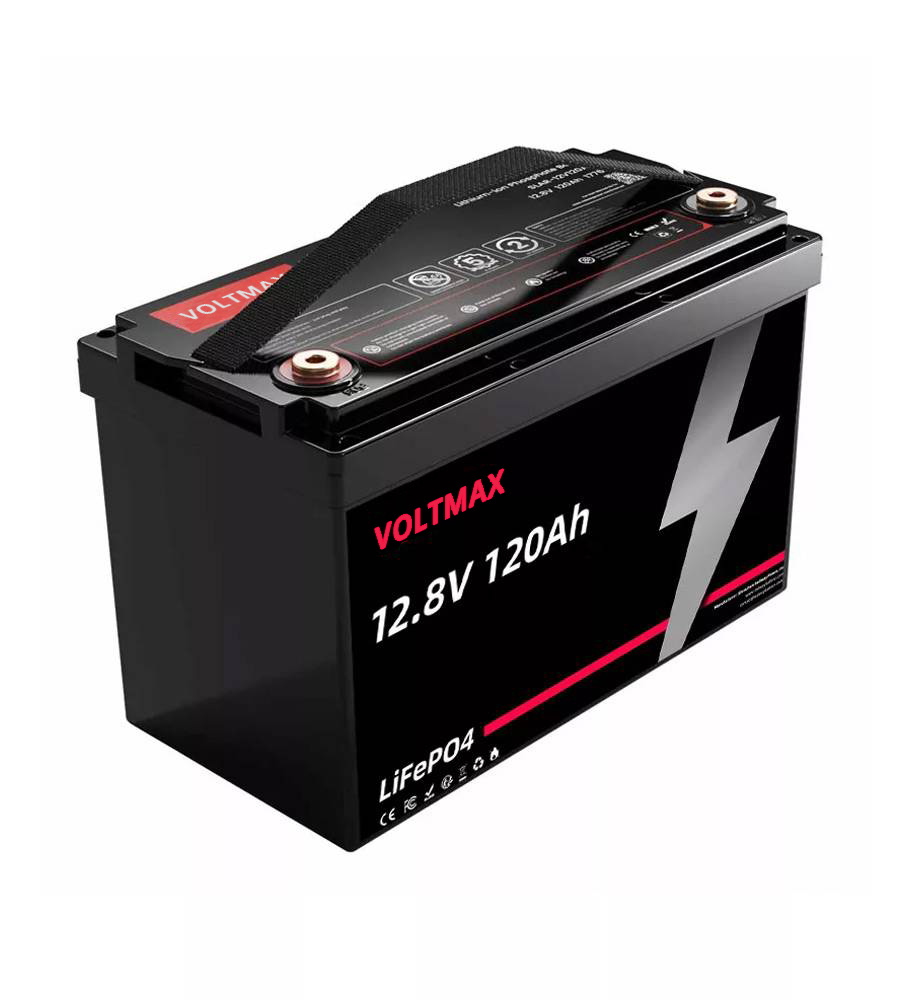

12V 120Ah lithium battery (31 groups)
Category: 12v RV lithium battery
(self-heating, RV battery, marine battery, 24 sets, GP24)
Lithium battery: Lithium Iron Phosphate (LFP)
Rated voltage: 12.8V
Nominal capacity:120Ah
Rated energy: 1536Wh
Dimensions (length x width x height): 330×172×215mm/ (13×6.8×8.4 inches)
Weight: 10KG/
IP Rating: IP65
12V 120Ah lithium battery (Group 31) – A high-capacity energy solution from Aoge Power, designed for various applications. Utilizing LiFePO4 technology, this battery can deliver a nominal energy output of 1536Wh and features a durable design, ensuring long-lasting performance. It is an ideal choice for OEM/ODM and wholesale buyers, offering customization options and reliable power storage.
Key features:
High energy capacity: Rated capacity is 120Ah, capable of delivering 1536Wh of energy, ideal for RVs, ships, and off-grid systems.
Extended cycle life: Designed for 6000 cycles with a discharge depth (DOD) of 80%, ensuring excellent lifespan and cost-effectiveness.
Built-in battery management system (BMS): Equipped with an intelligent BMS, it can prevent overcharging, overdischarging, and extreme temperatures to enhance safety.
Various operating conditions: Operates effectively within the temperature range of -20°C to 65°C, suitable for various environments.
Compact and lightweight design: Dimensions are 330 x 172 x 215mm, with a weight of approximately 10kg. This battery is easy to install and transport.
Product Description:
Introducing 12V 120Ah lithium battery (31 sets), a versatile power solution designed for demanding applications. This battery utilizes advanced LiFePO4 technology, with a nominal voltage of 12.8V and an impressive energy capacity of 1536Wh, making it an ideal choice for RVs, ships, and off-grid setups. It is specifically designed for efficient operation under various conditions, capable of charging at temperatures ranging from 0°C to 60°C, and at -20°C and 65°C. Its self-discharge rate remains at 1.5% per month, allowing for extended storage without capacity loss. The maximum continuous charging and discharging current is 100A, enabling it to effectively handle large power demands. The durable ABS casing provides fire protection and ensures the battery’s lifespan. For OEM/ODM customers, we offer a wide range of customization options, including screen-printed labels and user manuals. Our flexible delivery terms (FOB, EXW, CIF) ensure that your order is promptly processed within the specified time frame – up to 20 days. Choose Aoge Power 12V 120Ah lithium battery (31 sets) for your energy storage solution and enjoy unparalleled performance, reliability, and intelligent technology. Trust our reliable batteries to enhance your power capabilities – your efficient energy journey begins here!
| 12V 120Ah Lithium Iron Phosphate (Group 31) | Specifications |
| Lithium Battery | Lithium Iron Phosphate (LFP) |
| Model | AG12120LFP-LPRV |
| Rated Voltage | 12.8V |
| Nominal Capacity | 120Ah |
| Nominal Energy | 1536Wh |
| Maximum Charging Voltage | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Maximum Continuous Charging Current | 100A |
| Maximum Continuous Discharging Current | 100A |
| Dimensions [Length x Width x Height] | 330×172×215mm / 13×6.8×8.4 inches |
| Weight | ~10kg |
| IP Rating | IP65 |
| Series and Parallel Connections | 4S8P |
| Maximum Battery Parallel Connections | 4 |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >6000 cycles (80% DOD) |
| Self-discharge | 1.5% (per month) |
| Charging Temperature | 0°C~60°C |
| Discharging Temperature | -20℃~65℃ |
| Optional Upgrades | Self-heating / Bluetooth / App / WiFi / 4G / GPS / LCD display / RS485 / RS232 / CAN bus / Solar panel / Solar MPPT / etc. |
| Charger | Optional |
| BMS | Overcharge / Overvoltage / Overcurrent / Overload / Overheat / Low temperature / Undervoltage / Short circuit / etc. |
| Terminal | M8 |
| Battery Case | ABS (flame-retardant plastic) |
| Warranty Policy | 5 years |
| Silk Screen Printing / Label / Laser Logo | Yes |
| User Manual / Warranty Card | Yes |
| Customization / OEM / ODM | Yes |
| Shipping | Yes |
| Company Certifications | UL1642, IEC62619, IEC 62133, CE, RoHS, MSDS, UN38.3 |
