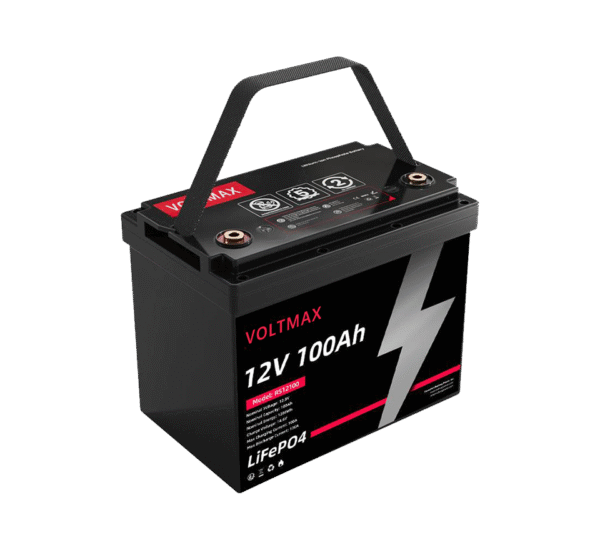

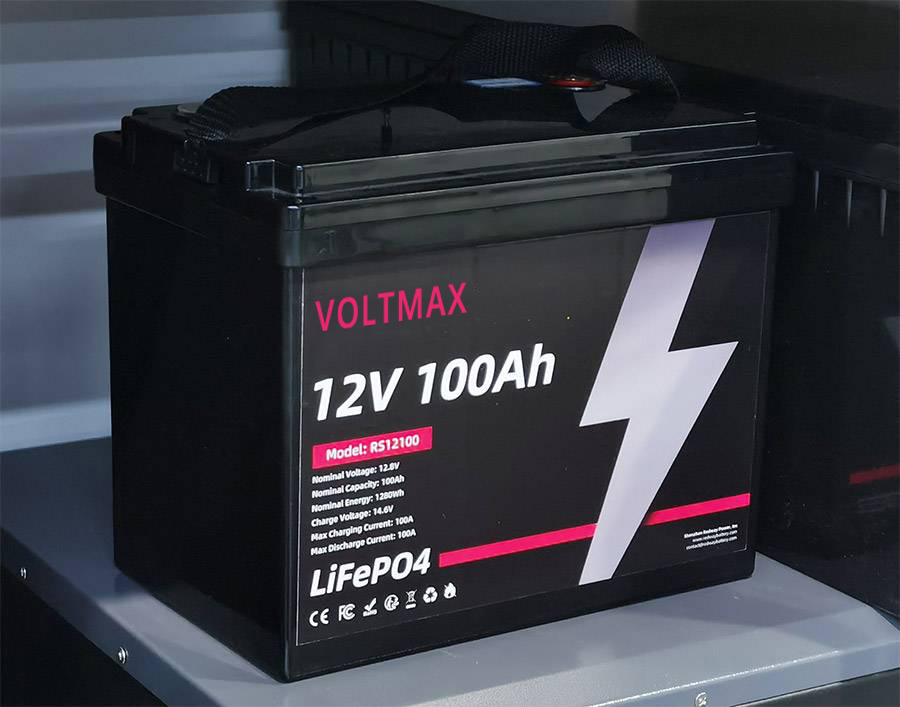

12V 100Ah lithium iron phosphate battery
Category: 12v RV lithium battery
(self-heating, RV battery, marine battery, 24 sets, GP24)
Lithium battery: Lithium Iron Phosphate (LFP)
Rated voltage: 12.8V
Nominal capacity:100Ah
Rated energy: 1820Wh
Dimensions (length x width x height): 260×168×210mm/ (10.2×6.6×8.3 inches)
Weight: 10KG/22 pounds
IP Rating: IP65
The 12V 100Ah lithium iron phosphate battery Aoge Power is specially designed to provide the best performance for RV and Marine applications. With Bluetooth connection and self-heating, this battery ensures reliable energy storage and management. With a capacity of 1280Wh and a robust design, it is highly suitable for OEM/ODM and wholesale buyers seeking high-quality power supply solutions.
Key features:
Advanced self-heating function: The built-in self-heating feature enables the battery to operate effectively at low temperatures, thereby enhancing performance.
Large capacity: The nominal capacity is 100Ah, capable of delivering 1280Wh of energy for various applications.
Long cycle life: Designed for 6000 cycles, with a 80% discharge depth (DOD) , ensuring long-term reliability.
Intelligent connection: Equipped with Bluetooth and application integration for real-time monitoring and control of battery performance.
Advanced safety protection: Includes an intelligent battery management system (BMS) to prevent overcharging, overdischarging, and extreme temperatures.
Product Description:
Aoge Power 12V 100Ah LiFePO4 lithium battery, this is a multi-functional power solution, highly suitable for RVs, ships and off-grid applications. With a nominal voltage of 12.8V and an impressive energy output of 1280Wh, this battery is designed to meet modern energy demands.
It features advanced LiFePO4 technology to ensure safety and efficiency. It operates effectively within a wide temperature range, from 0°C to 60°C, and can reach -20°C to 65°C. The weight is approximately 9.8 kilograms (21.6 pounds), making it lightweight yet powerful enough to handle large energy loads.
The self-discharge rate remains at a low level, with a monthly rate of ≤1.5%, allowing for extended storage without losing capacity. The maximum continuous charging and discharging current is 100A, enabling it to handle demanding applications. For OEM/ODM customers, we offer a wide range of customization options, including screen-printed labels and user manuals.
Our flexible delivery conditions (FOB, EXW, CIF) ensure that your order is promptly processed within the specified time frame – up to 20 days. Choose Aoge Power 12V 100Ah LiFePO4 lithium battery for your energy storage solution, providing unparalleled performance, reliability and intelligent technology. Use our reliable batteries to enhance your power capacity – your adventure is waiting for you!
| 12V 100Ah Lithium Battery | Specifications |
| Model | AG12100LFP-LPRV |
| Battery Type | Lithium Iron Phosphate |
| Rated Voltage | 12.8V |
| Rated Capacity | 100Ah |
| Rated Energy | 1280Wh |
| Maximum Charging Voltage | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Maximum Continuous Charging Current | 50A (0.5C) |
| Maximum Continuous Discharging Current | 50A (0.5C) |
| Standard Continuous Charging Current | 25A |
| Standard Continuous Discharging Current | 25A |
| Dimensions [Length x Width x Height] | 260x168x210mm 10.2×6.6×8.3 inches BCI Group 24 (GP24) |
| Weight | ~10kg ~22lbs |
| Charger | 14.6V 20A Full charge in 5 hours |
| Cycle Life | >6000 cycles (80% DOD ) >4000 cycles (100% DOD ) |
| Internal Resistance | ≤30mΩ |
| Maximum Series Connections | 4 |
| Maximum Parallel Connections | 4 |
| Self-discharge | ≤1.5% per month |
| IP Rating | IP65 |
| Charging Temperature | 0°C~60°C |
| Discharging Temperature | -20°C~65°C |
| Storage Temperature | -10°C~50°C |
| Self-heating | Yes |
| LCD Display | Optional |
| Optional Upgrades | Bluetooth / APP / WiFi / 4G / GPS / LCD display / RS485 / RS232 / CAN bus / RJ45 / Modbus / Power switch / Circuit breaker / Active balancing / etc. |
| BMS | Intelligent BMS Overcurrent / Overvoltage / Undervoltage / Overcharge / Overdischarge / Overheat / Over-temperature / Low-temperature / Short circuit / etc. |

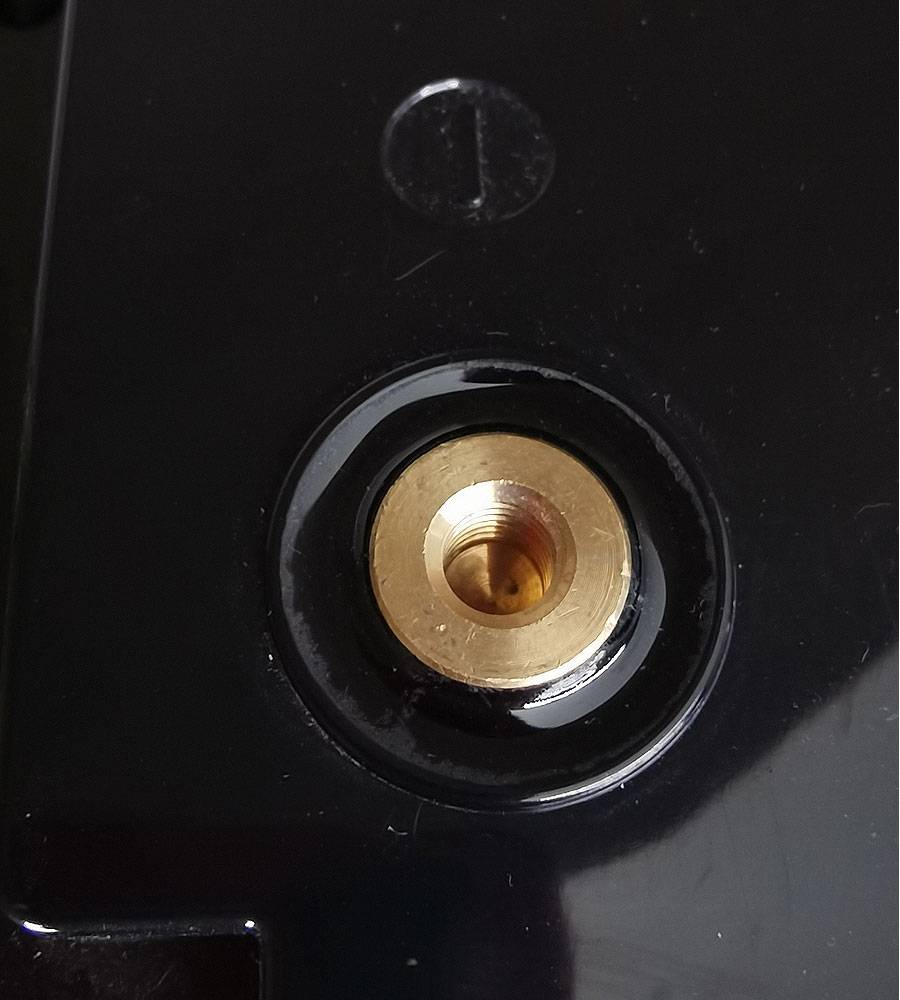

| Terminal | M8 |
| Battery Case | ABS |
| Design Life | 10 years |
| Silk Screen Printing / Label / Laser Marking | Yes |
| User Manual | Yes |
| OEM / ODM | Yes |
| Certifications | IEC 62619 / UL 1642 / CE / MSDS / UN38.3 |
| Applicable Environments | Winter snow, mountains, deserts, cities, humid lands, etc. |
